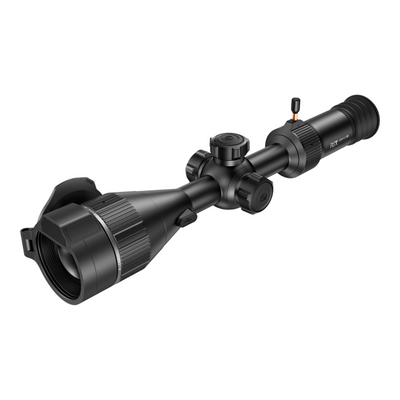

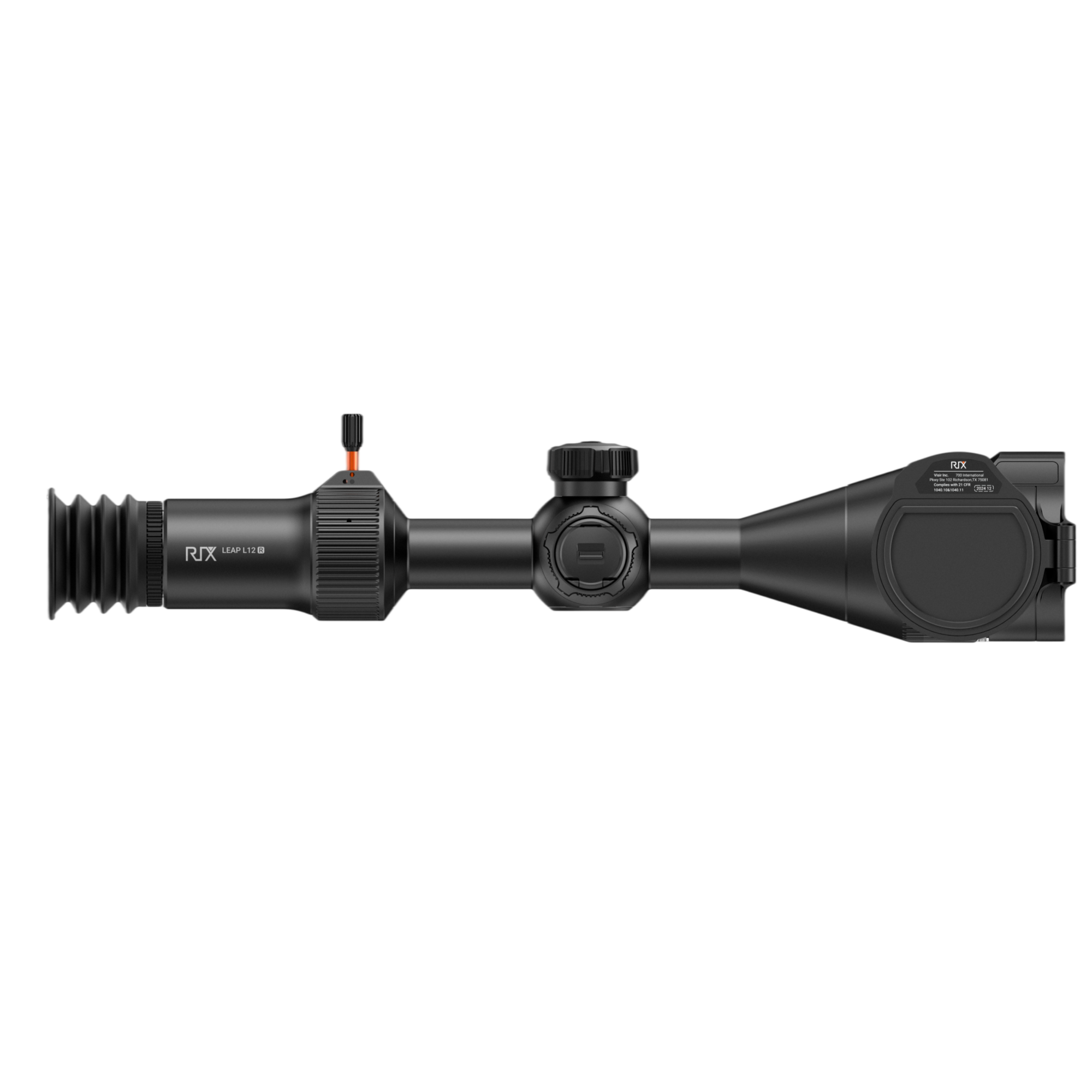

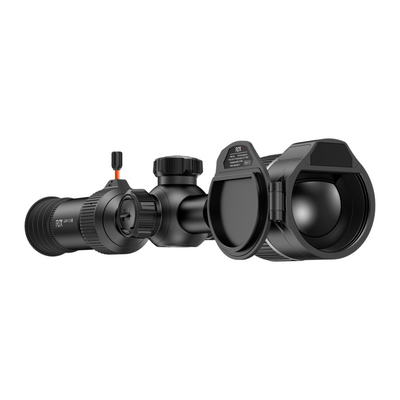

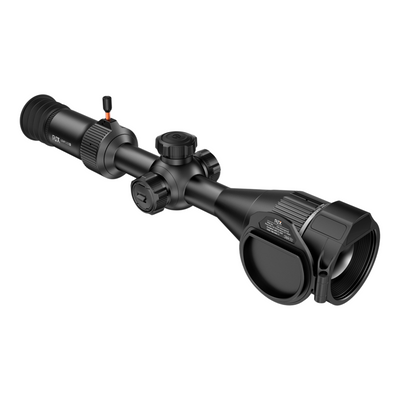

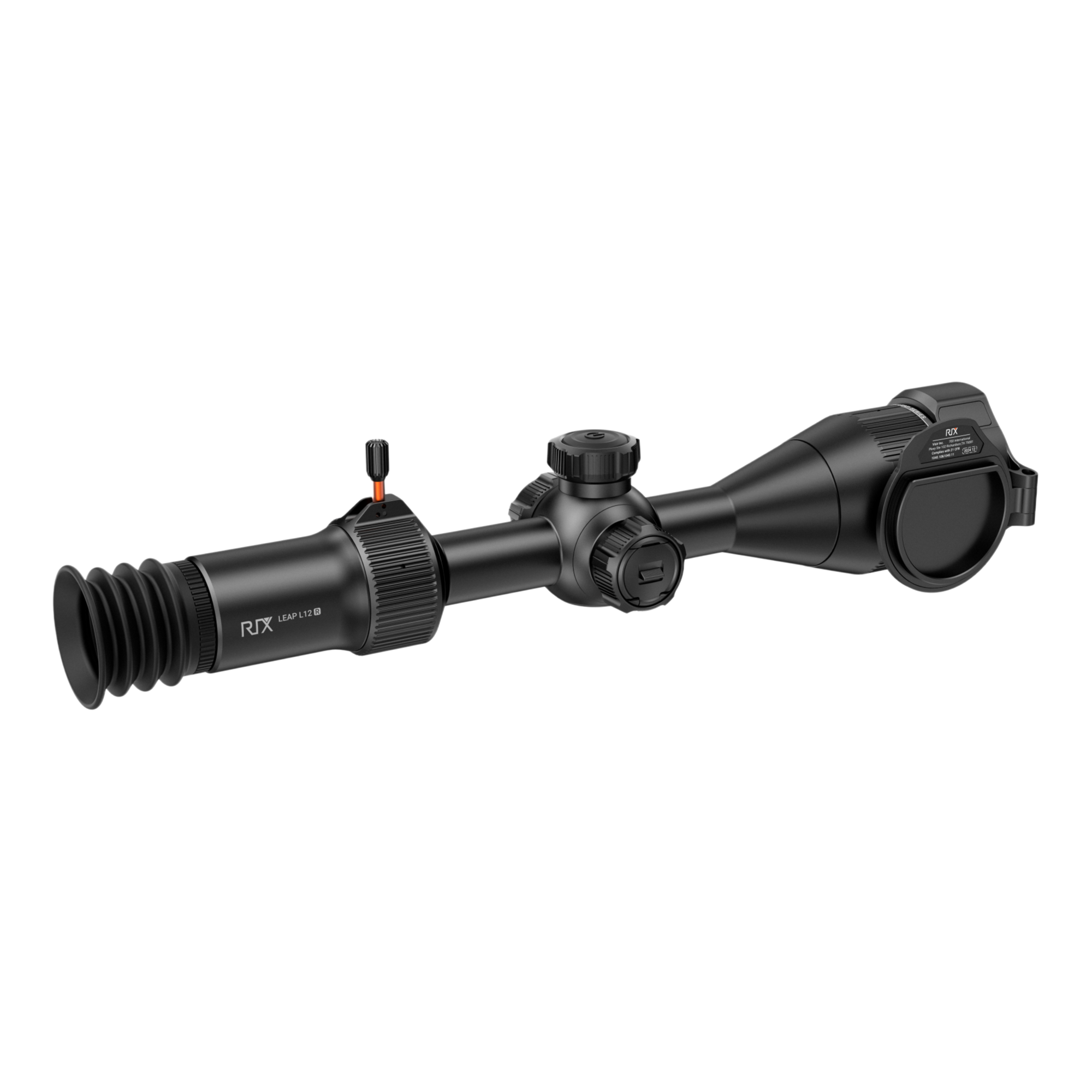

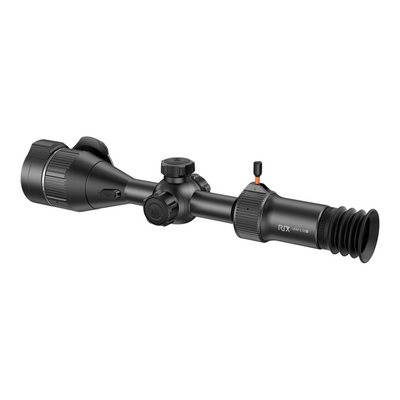

LEAP L12R Thermal Imaging Optic
Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
Display Resolution
NETD
Built-in Rangefinder
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
OTHER MODELS
WHY CHOOSE LEAP L12R
LEAP L12R

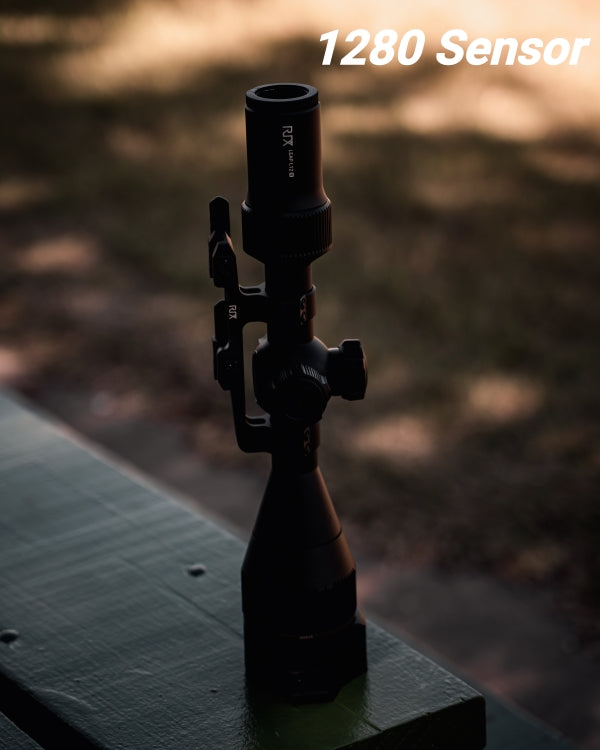

Powered by a 1280 sensor, advanced AI image processing, and a NETD below 15mK, the L12R delivers exceptional clarity, detail, and sensitivity, setting a new standard in its class. A 1.03-inch round AMOLED display with 2560×2560 resolution provides a sharp, immersive viewing experience.
Built for ease of use, the L12R features an intuitive interface and simple controls, enabling hunters to operate the device confidently in any situation.
SUPERIOR IMAGE QUALITY
Sharper Imaging, Greater Detail
Image clarity often suffers in tough conditions, but the premium 1280 × 1024 thermal sensor with NETD < 15mK in the LEAP L12R maintains sharp, detailed images. Paired with an F1.0/60 mm lens and a 60 Hz refresh rate, it captures every scene with exceptional sensitivity and precision.
Classic Round Display Feel

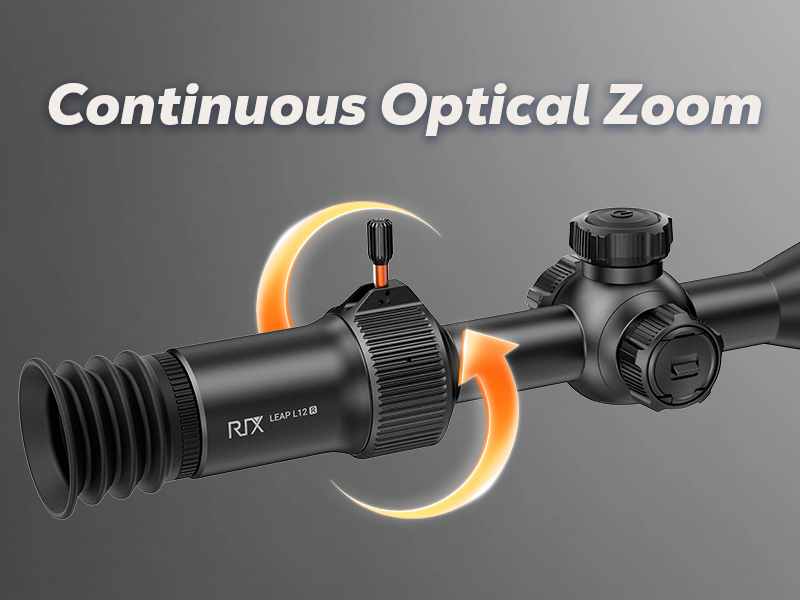

Unlike rectangular screens, the circular 1.03” 2560×2560 AMOLED display offers a familiar view through the eyepiece, designed for users of traditional optical devices. Paired with continuous optical zoom, it preserves image detail, delivering a precise and comfortable viewing experience.

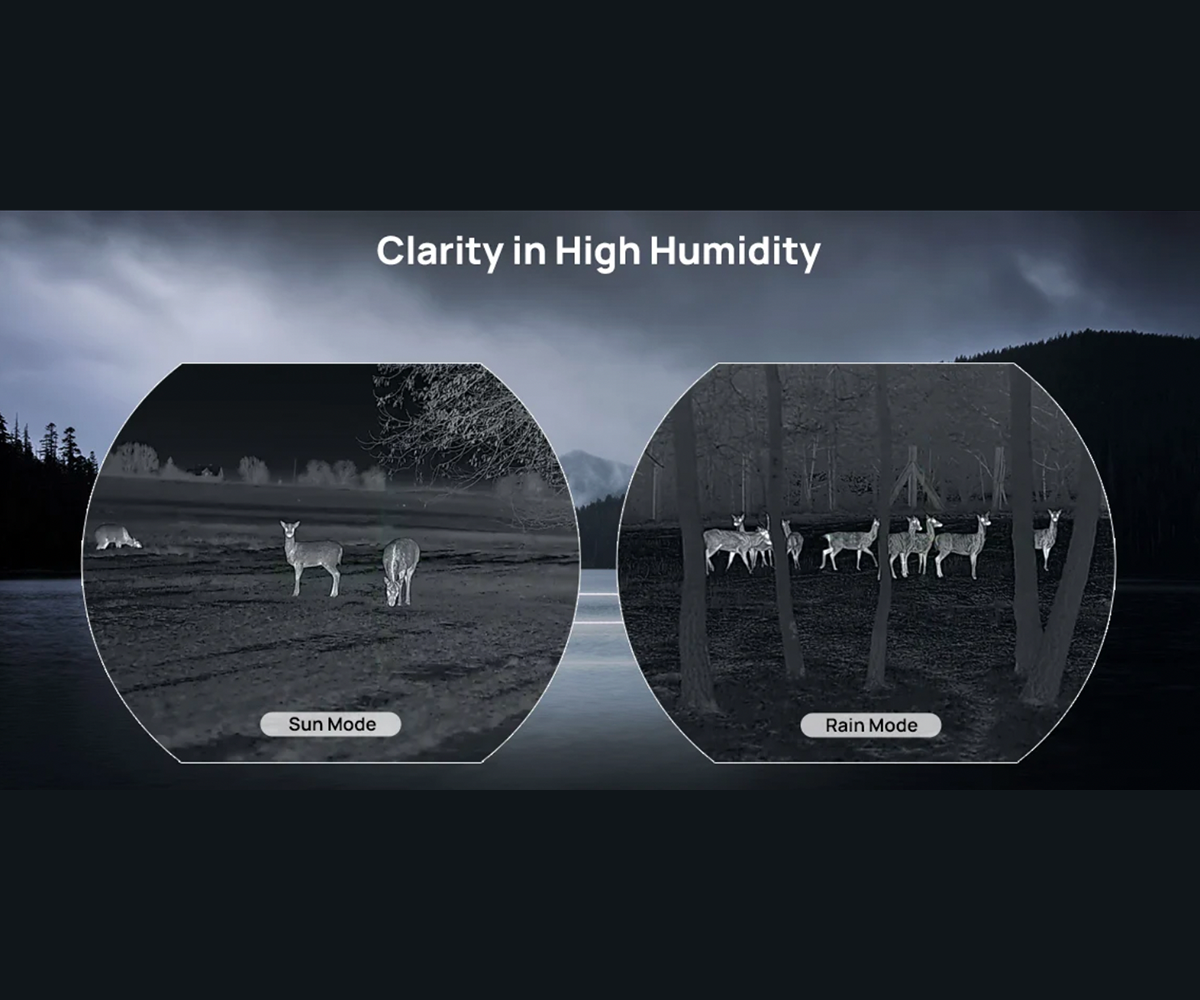

Clear Vision in Any Situation
Real-time image optimization reduces foggy or blurry effects caused by moisture, ensuring crisp and detailed visuals even in rain, mist, or humid conditions.

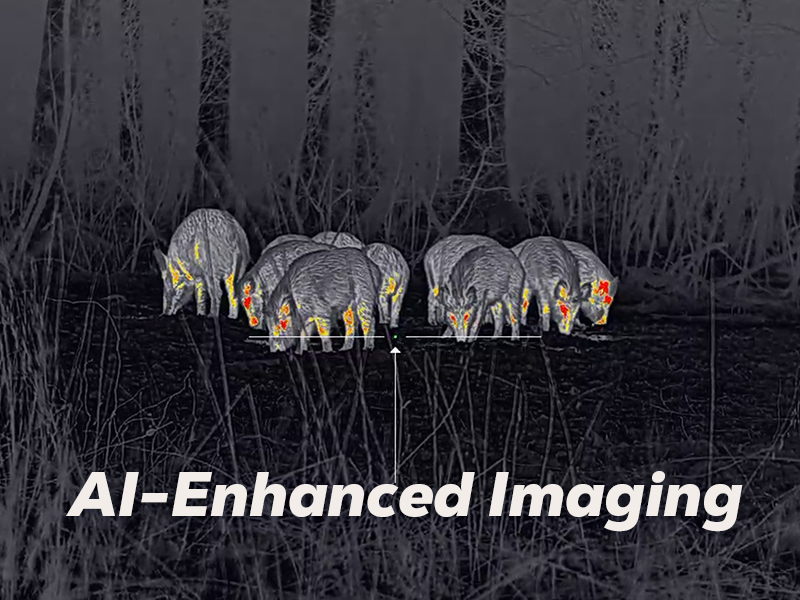

Digital zoom may blur image details, but LEAP L12R sharpens them with AI algorithms.
RET Technology fills in missing details when zoomed, keeping images smooth and clear.
Dynamic Scene Adaptation balances bright and dark areas, preserving local details.
Sharper Edge Definition enhances edges for clearer target separation.

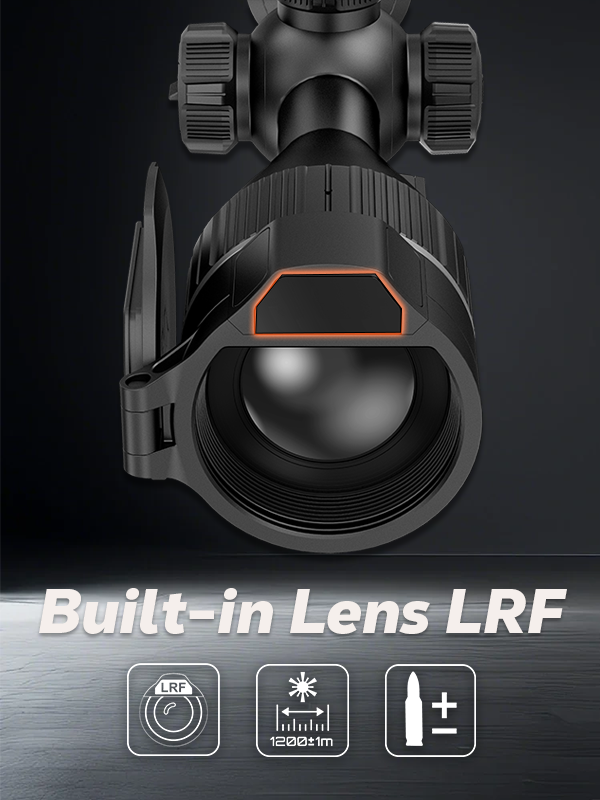

BUILT-IN LENS LRF FOR STABLE OPTICS

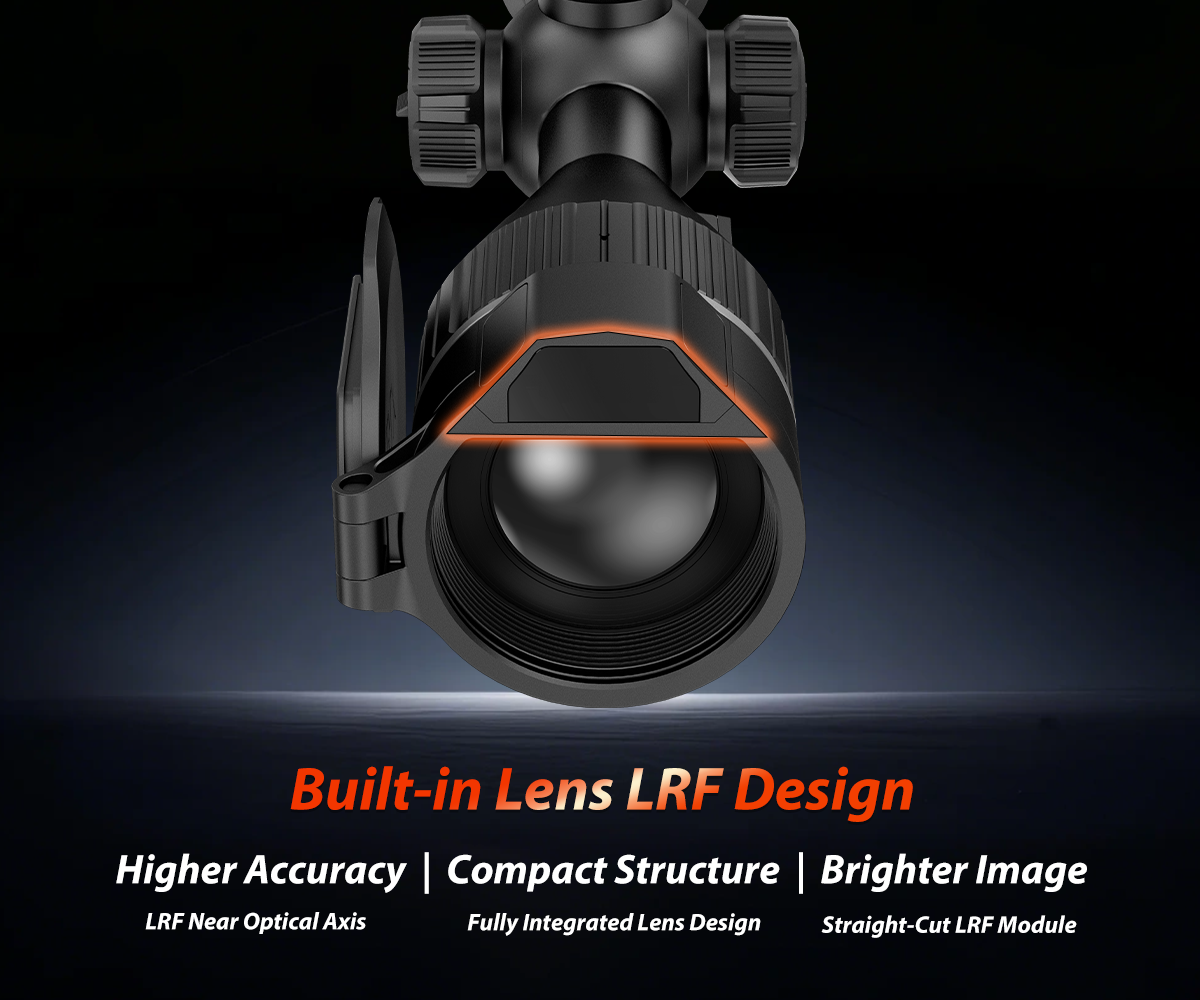

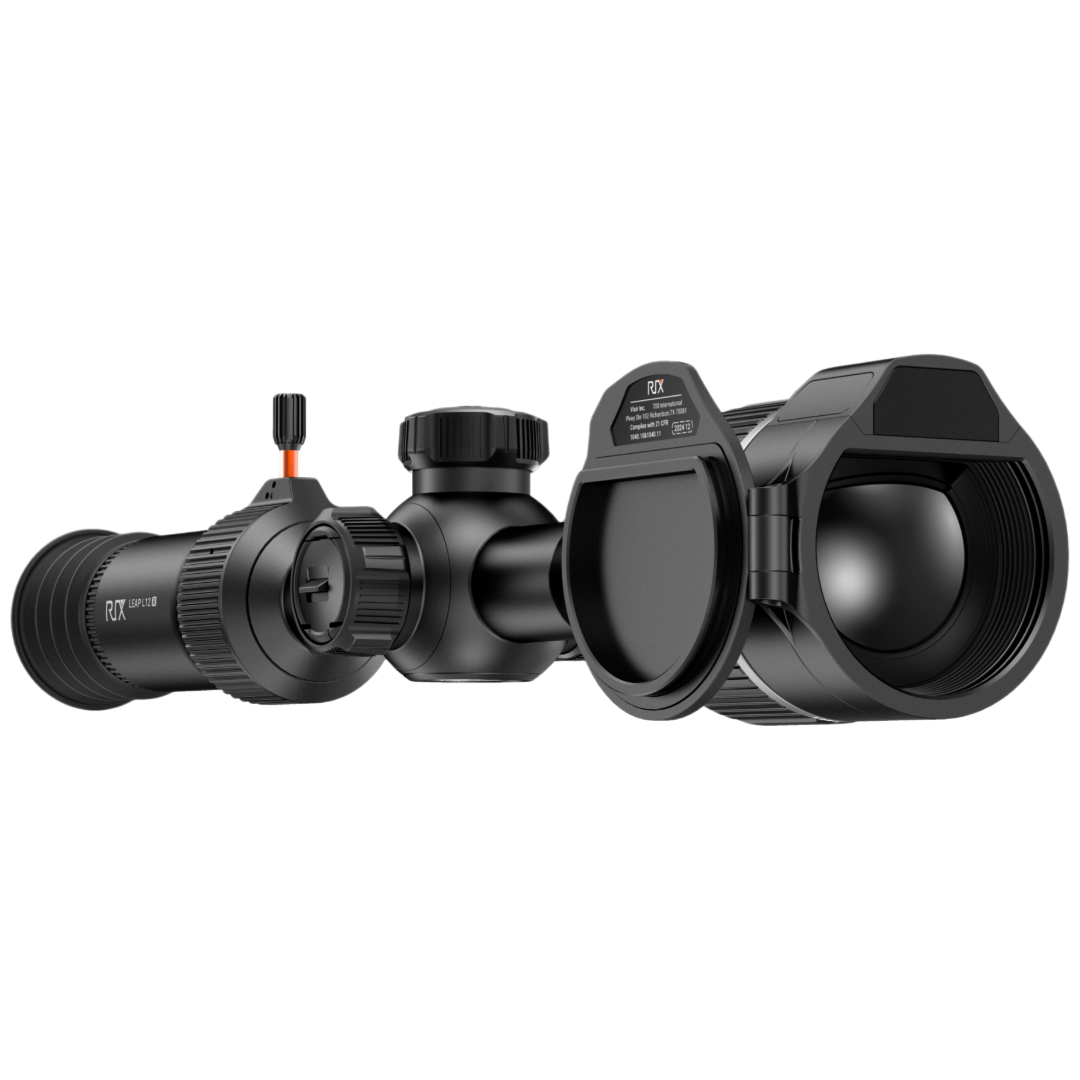

Robust and Bright Lens Design
Compared to irregular laser rangefinder cutouts, the linear “bar-style” design maintains a streamlined optical device profile with a smaller cross-section. It also increases light intake for improved clarity and enhances impact resistance to help protect the lens.
Unlike external rangefinders, which need setup and calibration, the LEAP LRF is integrated into the lens near the optical axis, providing precise measurements instantly with no extra adjustments.
Long-Distance Ranging & Precision Tracking

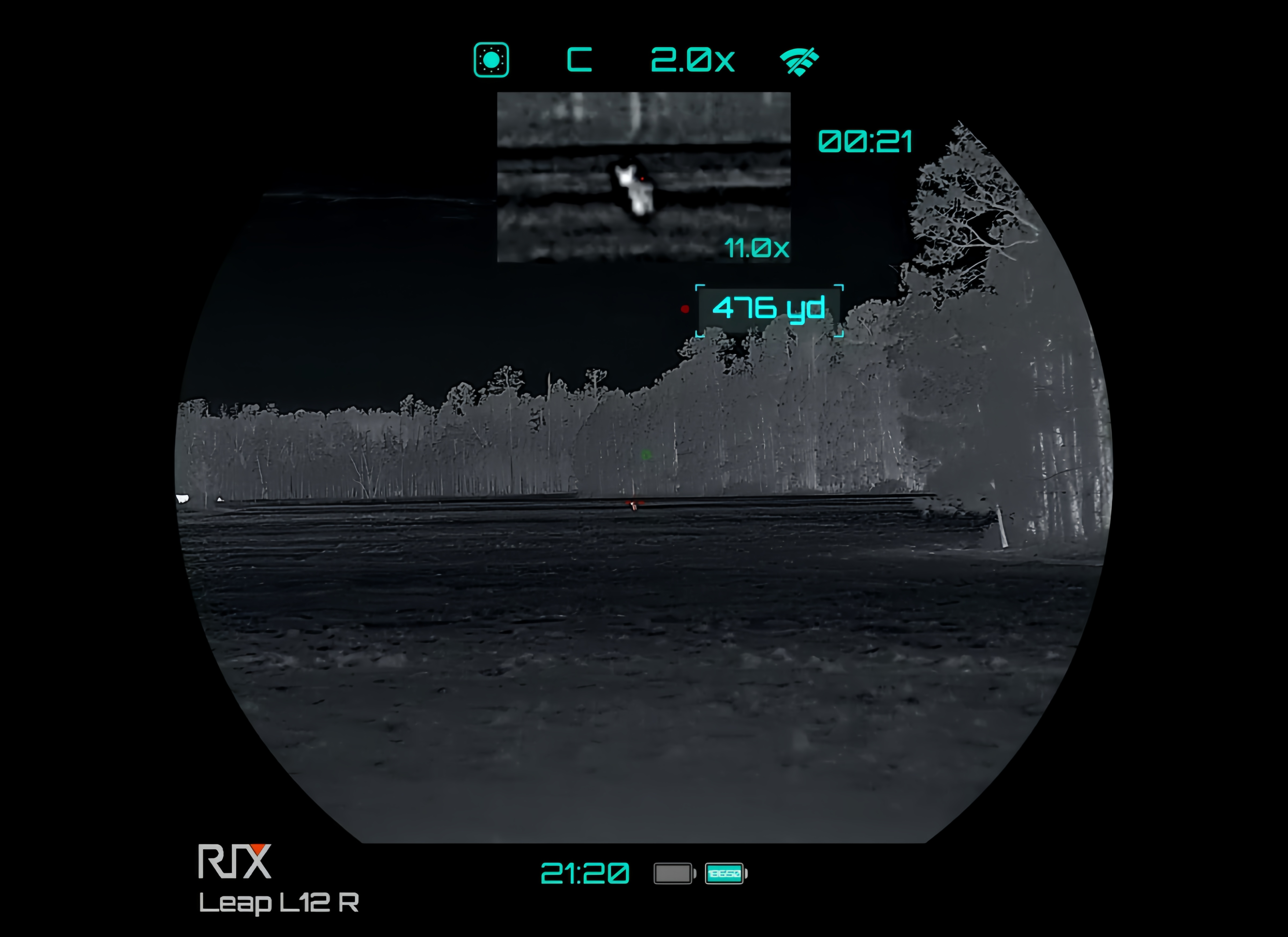

Since long-range observation requires absolute precision, the built-in laser rangefinder measures up to 1,200 meters and integrates with advanced environmental calculations to provide accurate distance compensation. The Picture-in-Picture (PIP) mode enhances details instantly for smoother and faster target tracking.
INTUITIVE CONTROLS FOR EFFORTLESS OPERATION

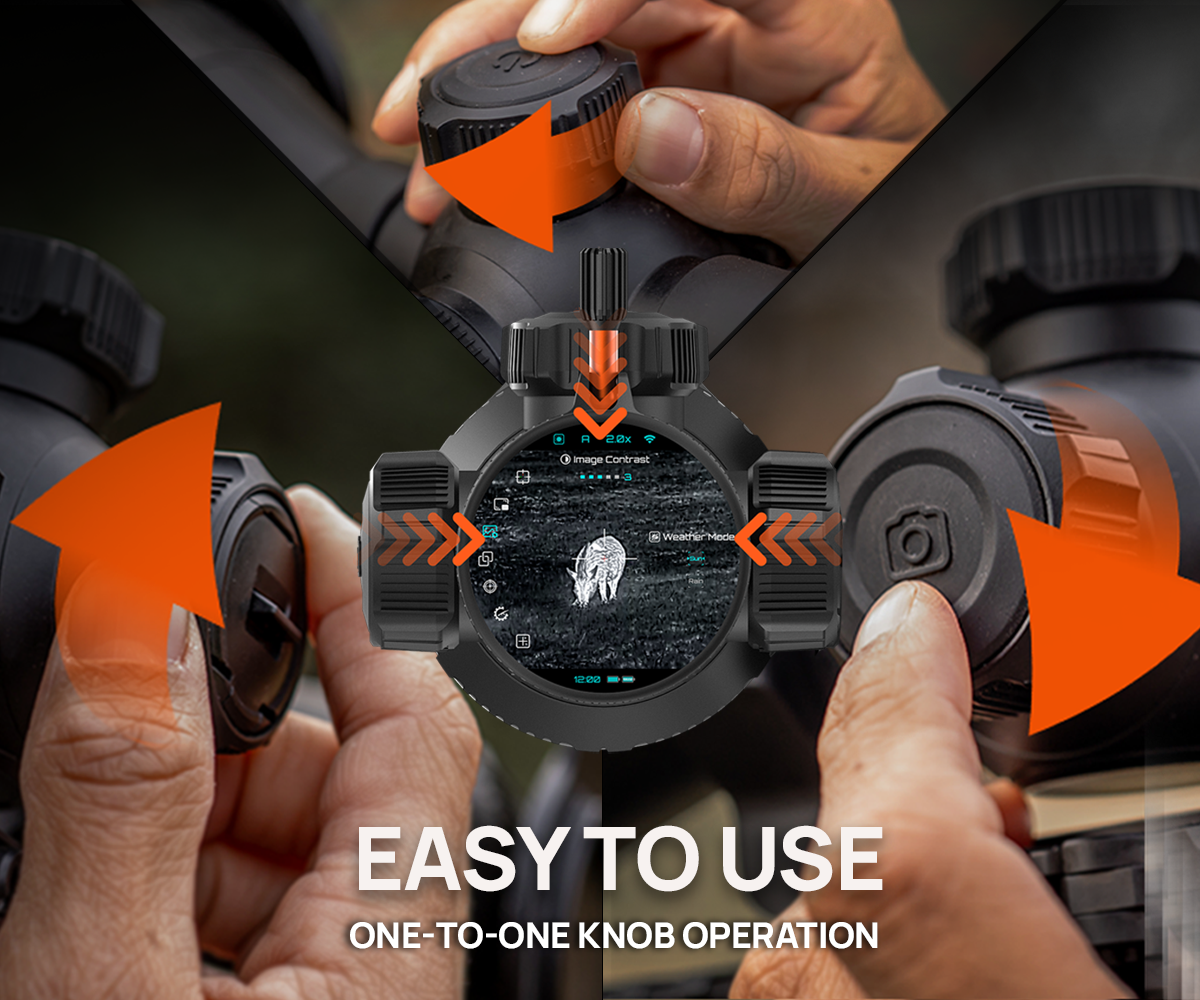

One-to-One Knob Operation
Complex menus risk missed opportunities. Each of the three knobs is mapped to a specific on-screen function, reducing menu layers and allowing quick, intuitive operation, even for beginners.

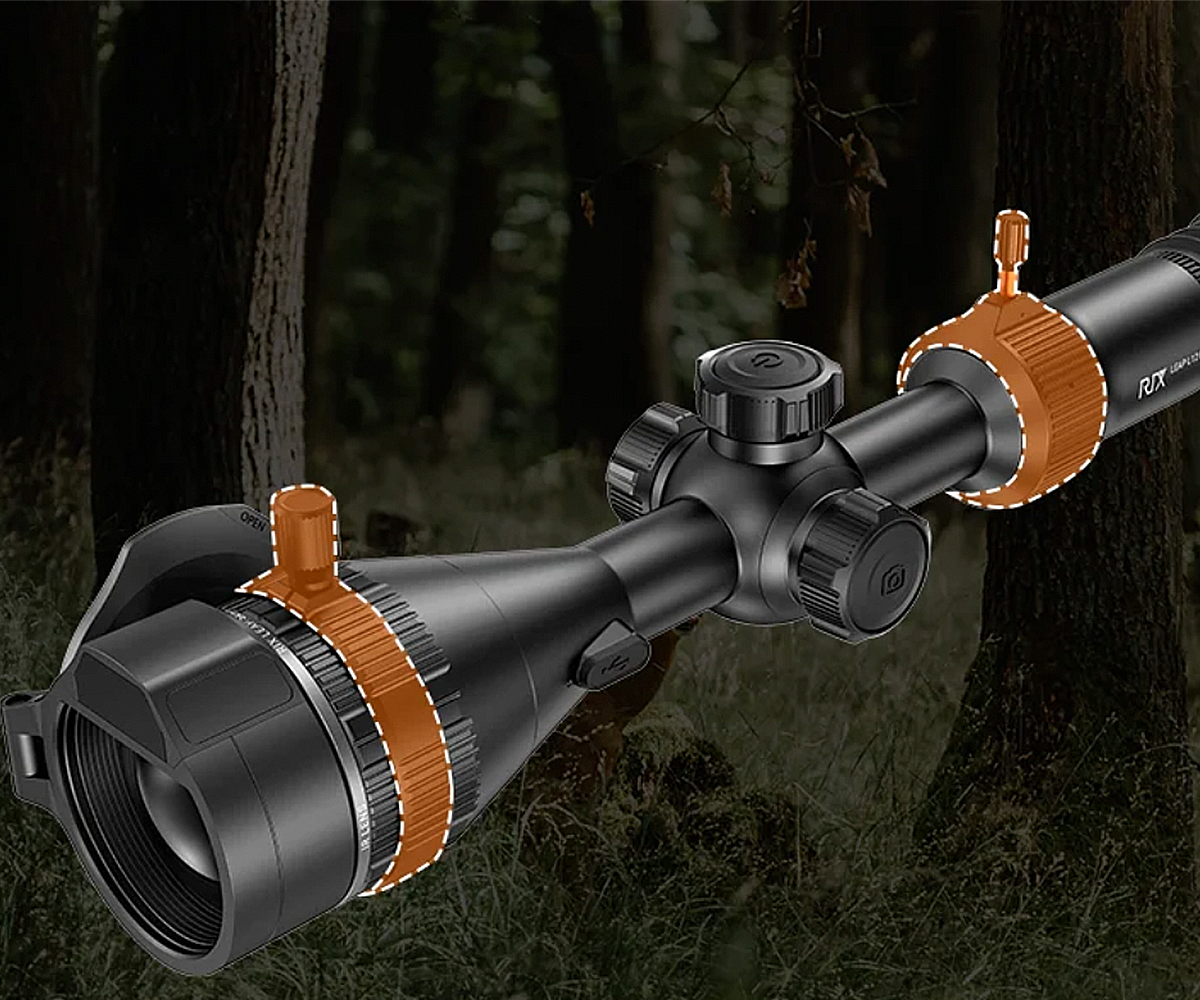

Easy Lever Adjustment
Eyepiece and optional objective lens adjustment levers make magnification adjustments effortless, providing smooth and precise lens control.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
1280×1024
Pixel Pitch
12μm
NETD
<15 mK
Frame Rate
60 Hz
Optical Specs
Objective Lens
60mm, F1.0
2~6×
Field of View(H×V), degrees/m@100m
14.6°×11.7°/25.6×20.5m
Digital Zoom
1～8×
Eye Relief
50mm
Diopter Adjustment
-5D ~ +5 D
Detection Range
3100m
Display Specs
Type
AMOLED
Resolution, pixels
2560×2560
Laser Rangefinding
Measurement Range
1200m
Measurement Accuracy
±1m
Video Recorder
Video / Photo Resolution
1280×1280
Video / Photo Format
.mp4 / .jpg
Built-in Memory
64 GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
1356 g
Dimensions
395×97×85 mm
Connections and Compatibilities
Battery Type
18650+Built-in rechargeable battery
Operating Time on Battery Pack (at t=25℃/72°F)
6.5 h
External Power Supply, V
5V (Type-C USB)
1000g / 6000J
30mm rings
Included in the Box
LEAP L12R
Battery Charger
USB Type C Cable
18650 Battery × 1 (70mm length)
Lens Cloth

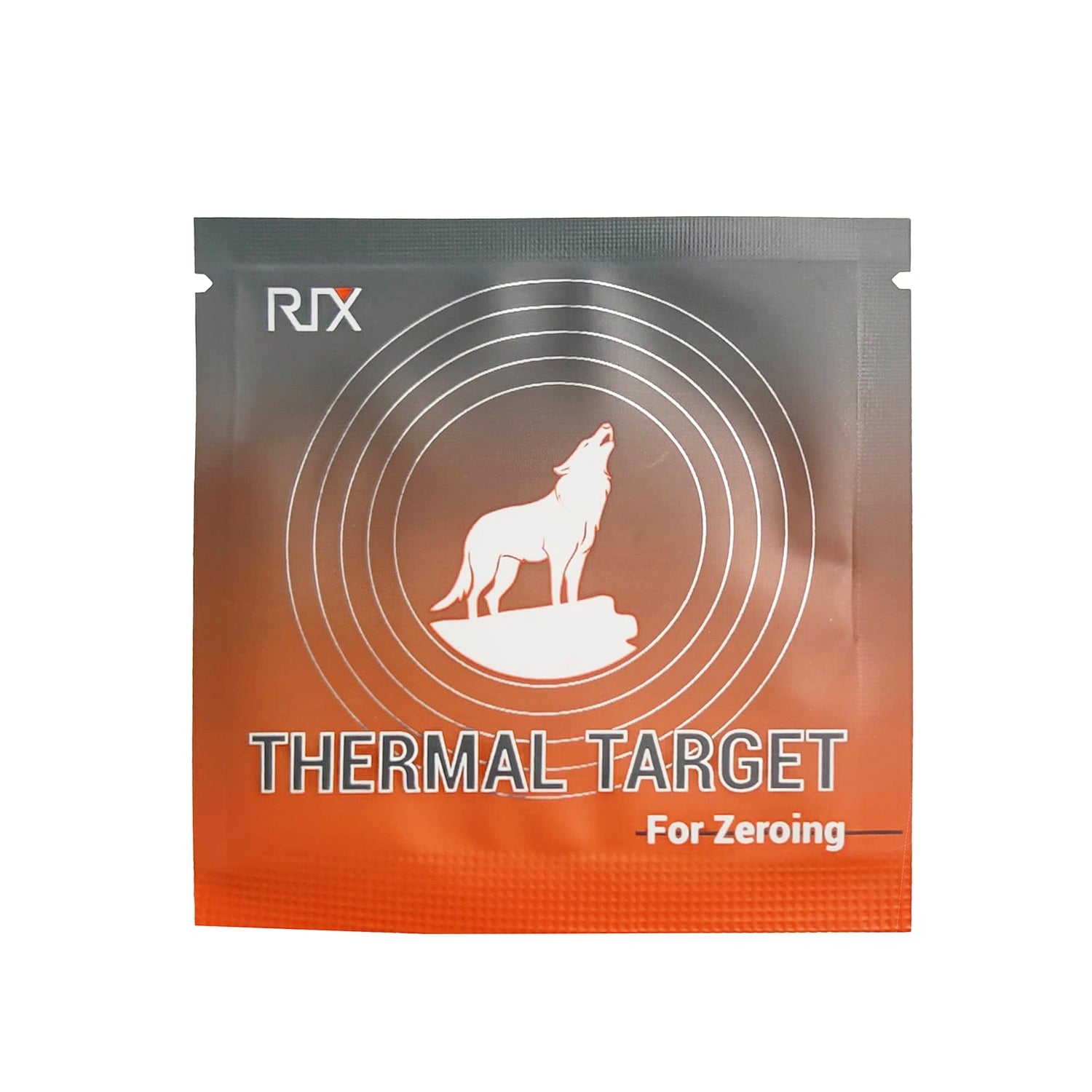

Thermal Target
