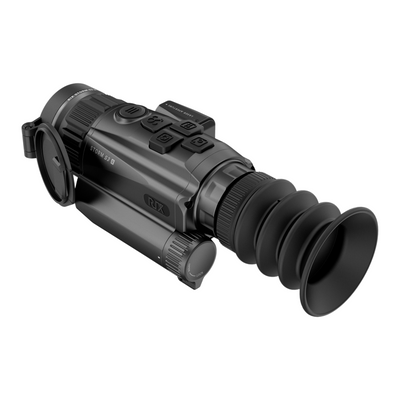

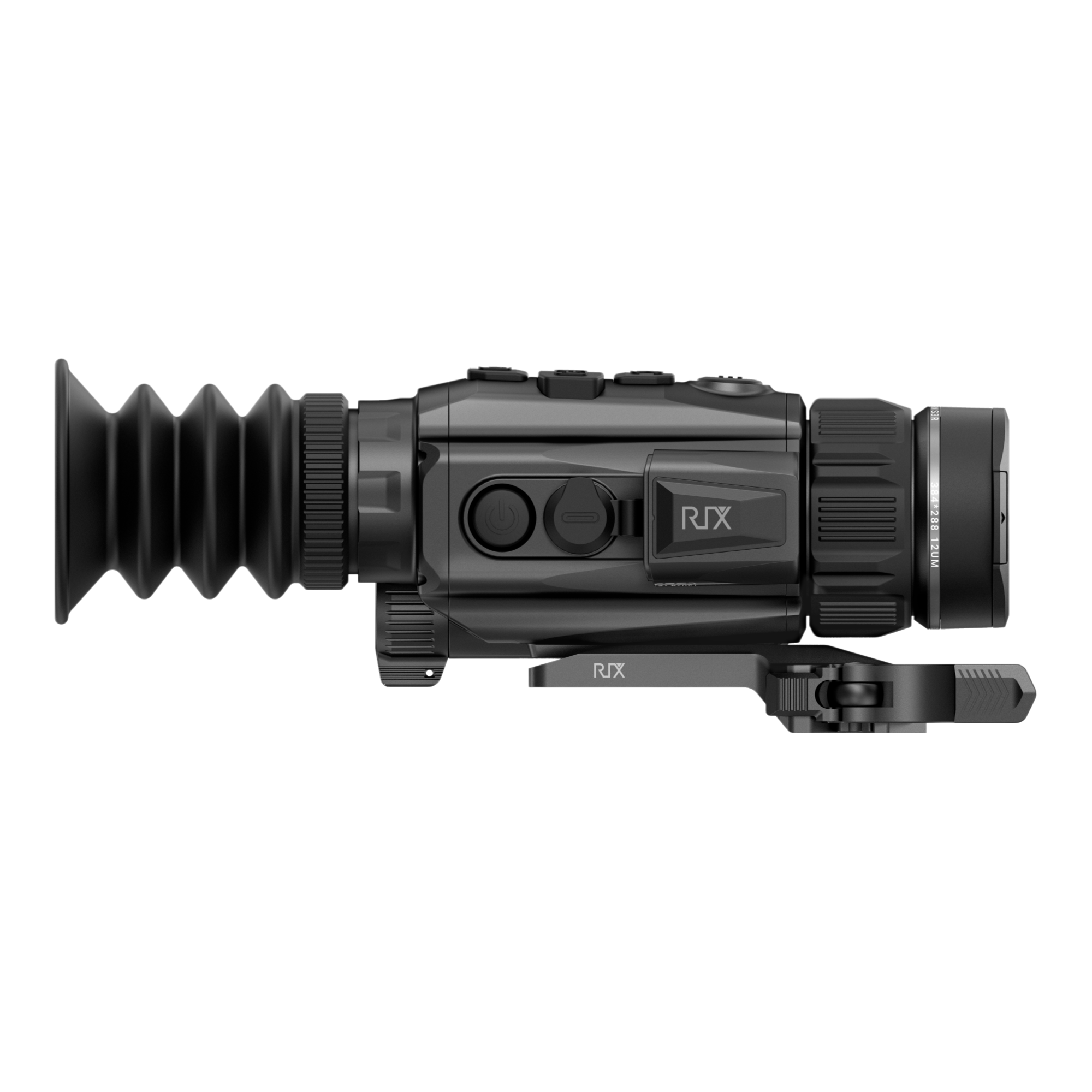

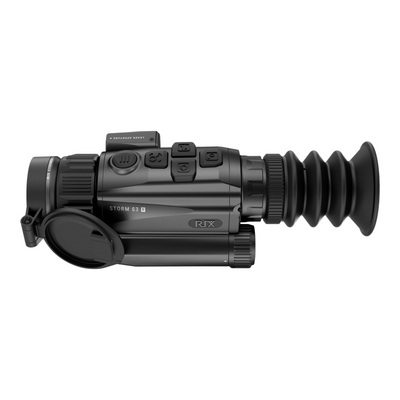

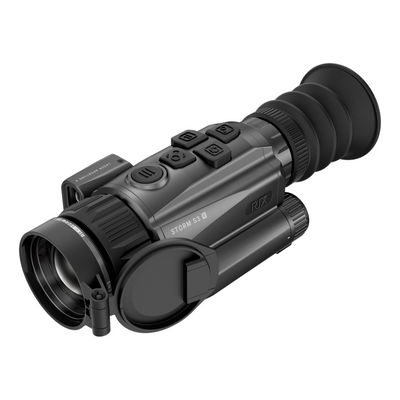

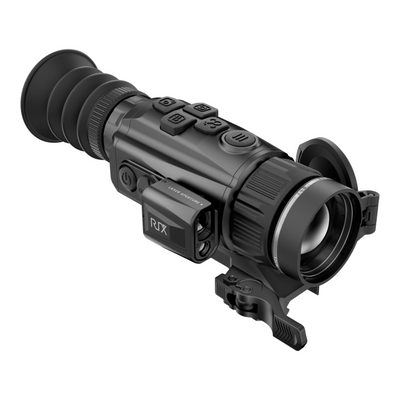

STORM S3R Thermal Imaging Optic
Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
NETD
Built-in lRF
Detection Range
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
OTHER MODELS
WHY CHOOSE STORM S3R
STORM S3R
S3R is built for mobility and precision in demanding conditions. Featuring a 384×288 thermal sensor with a 35mm lens, it delivers detection up to 1800m, while the integrated laser rangefinder provides accurate ranging up to 1200m with ±1 meter precision. Weighing just 454g, it stays light for handheld use. The enlarged four-directional buttons ensure intuitive control, even with gloves, with direct UI mapping for clear feedback. A free quick-release mount enables versatile gear setup, while the built-in smart trajectory tool improves long-range observation accuracy.

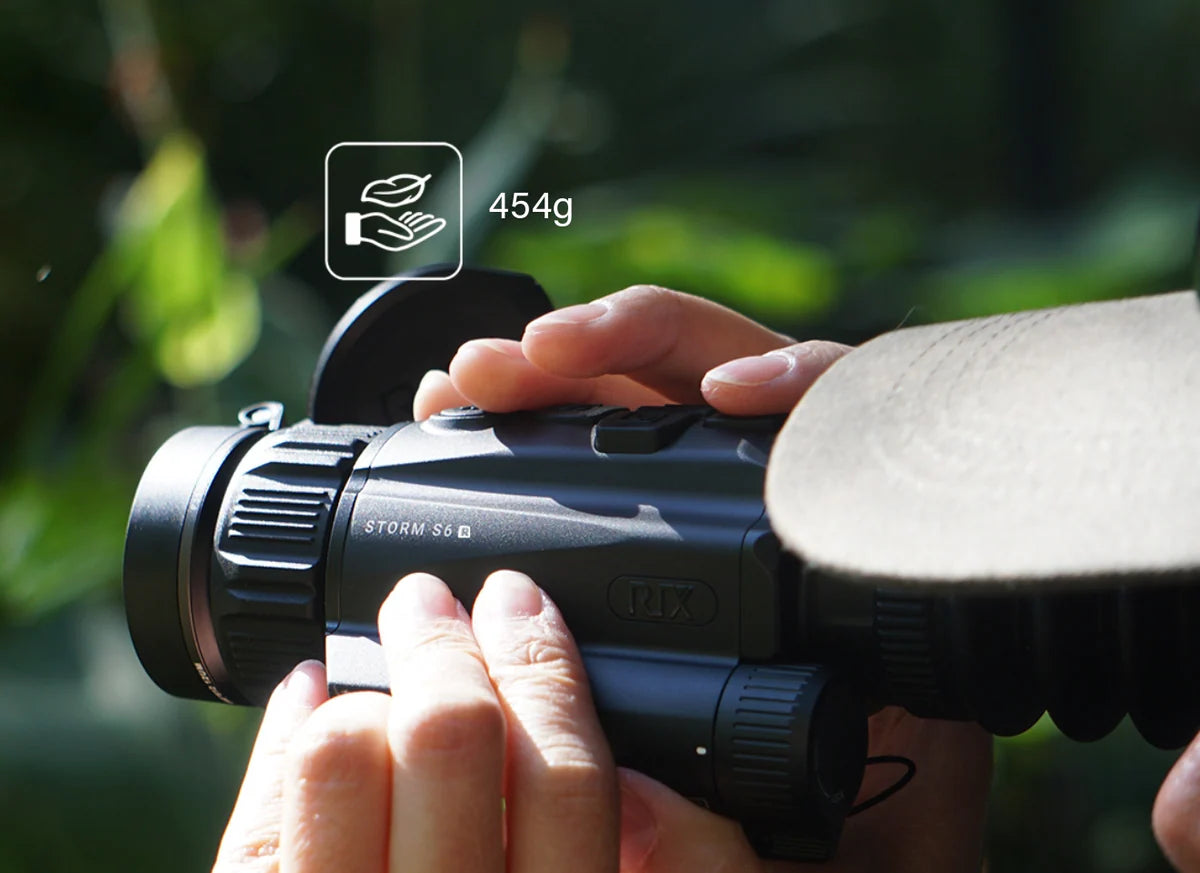

Lightweight. Reliable. Versatile.
Weighing just 454g, the STORM series is perfectly designed for comfortable handheld use. The S6R integrates an advanced rangefinder and smart distance tracking system—delivering unmatched clarity and precision for long-range observation.

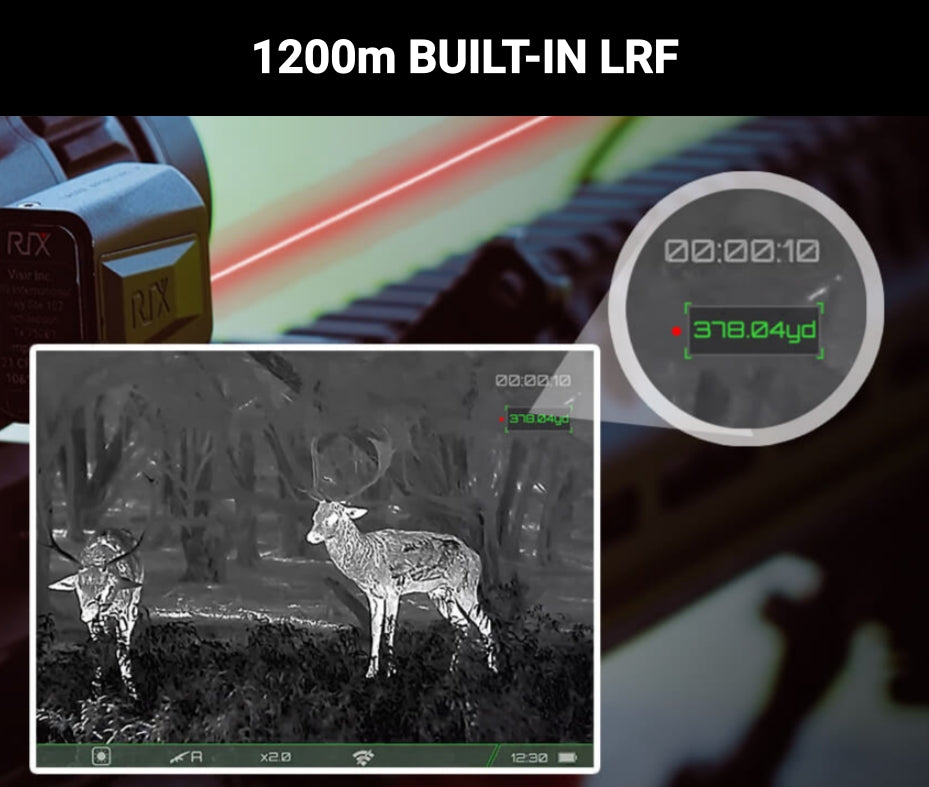

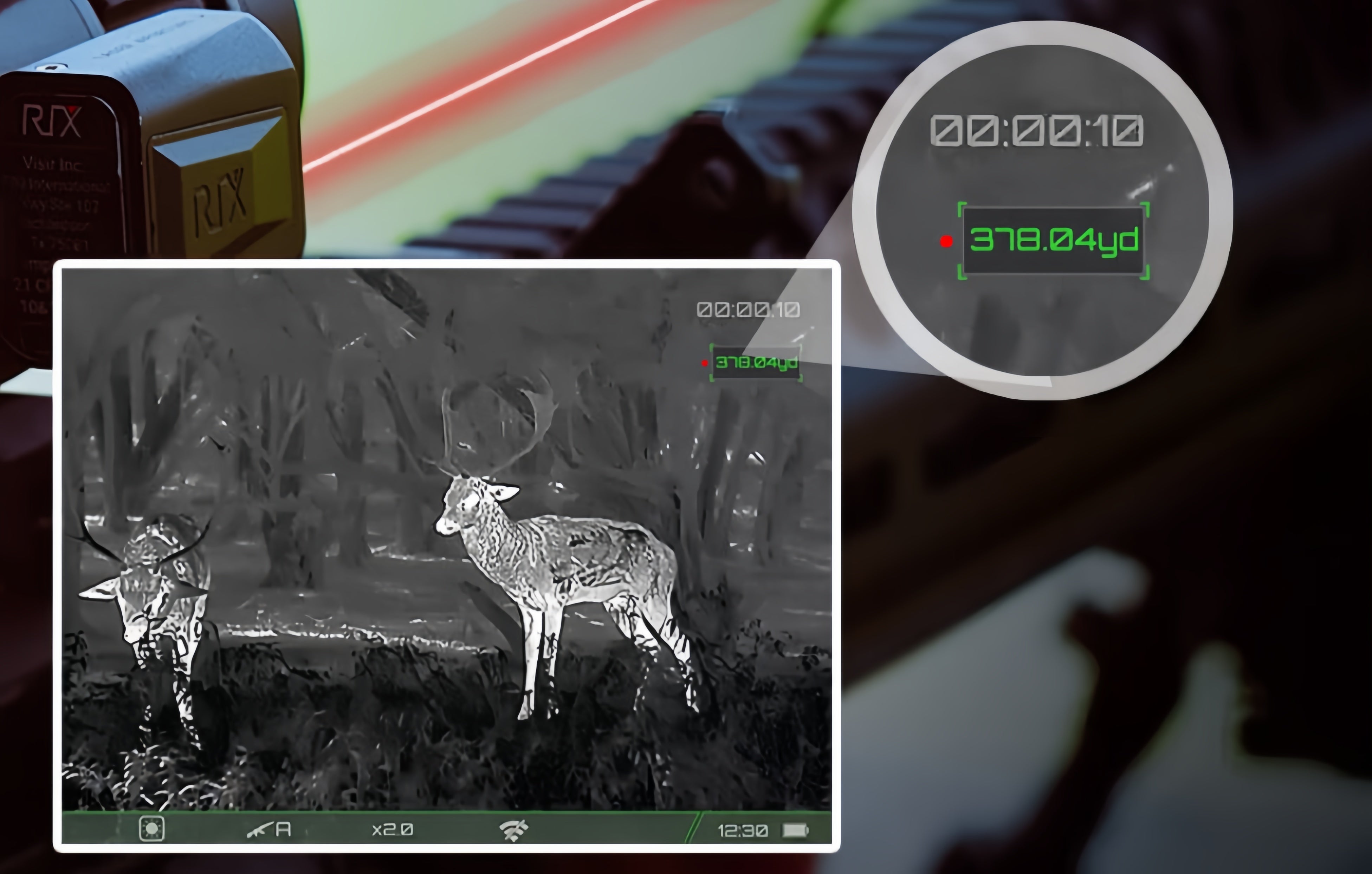

Compact LRF with Free Ballistics
The S3R features an integrated laser rangefinder with a 1,200m range and ±1m accuracy, combined with an automated trajectory estimation tool—delivering precise, real-time spatial data without any extra bulk.

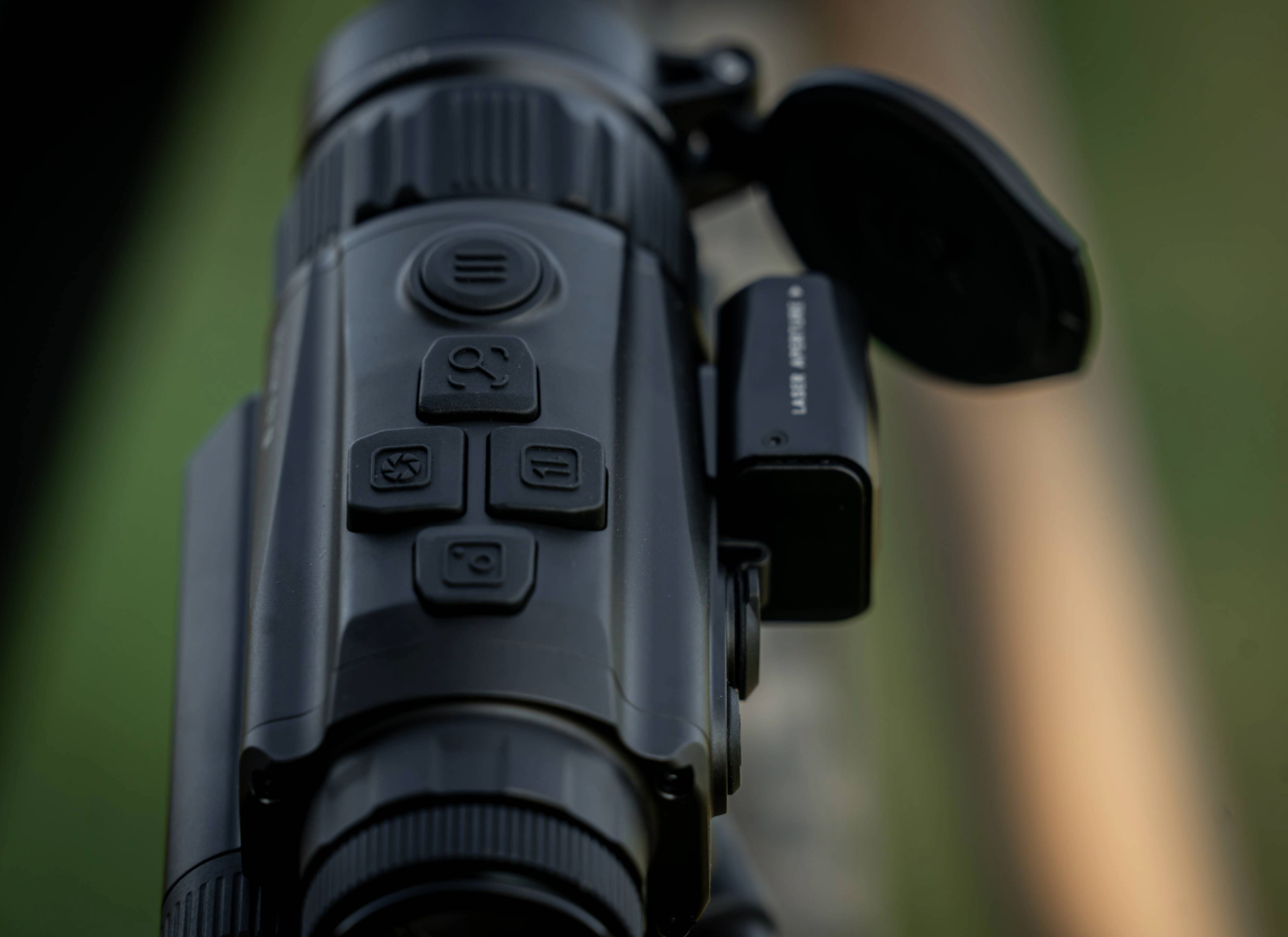

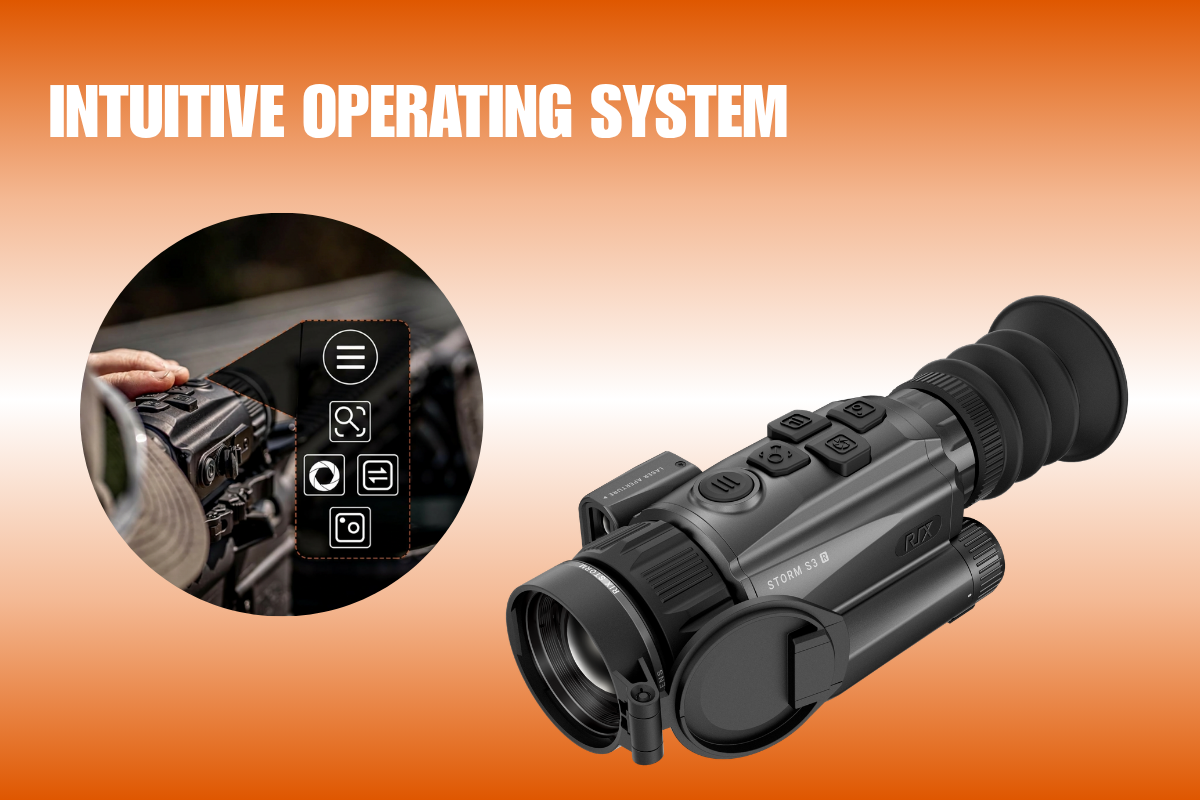

Precision Controls, Anywhere
Large directional buttons ensure quick, glove-friendly operation. And the uniquely designed directional pad offers effortless operation—even in complete darkness.

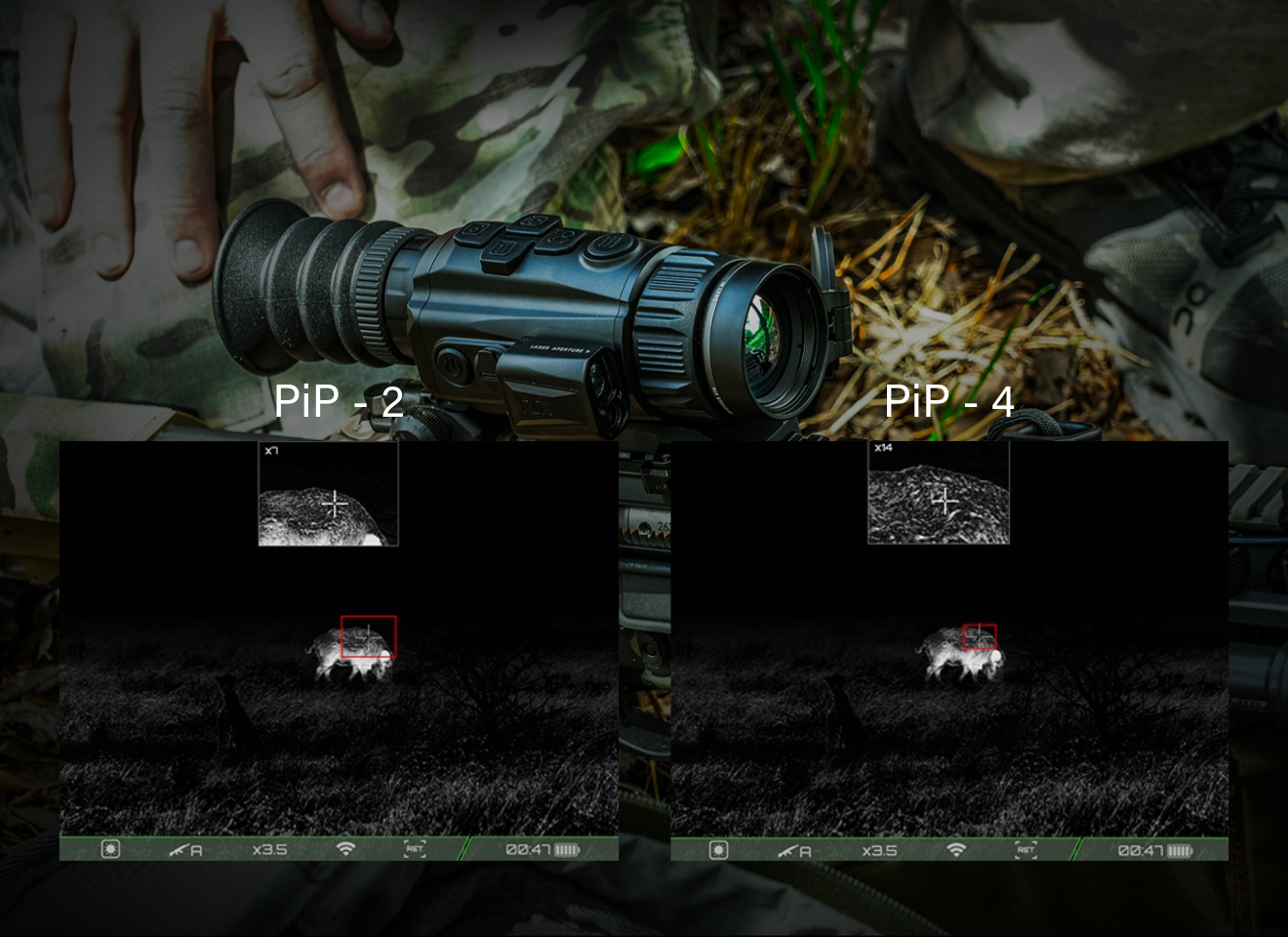

Picture-in-Picture. Zoom Your Way.
Unlike others, the STORM lets you adjust the PiP magnification independently from the main view—so you can stay aware of your surroundings while zeroing in with precision.

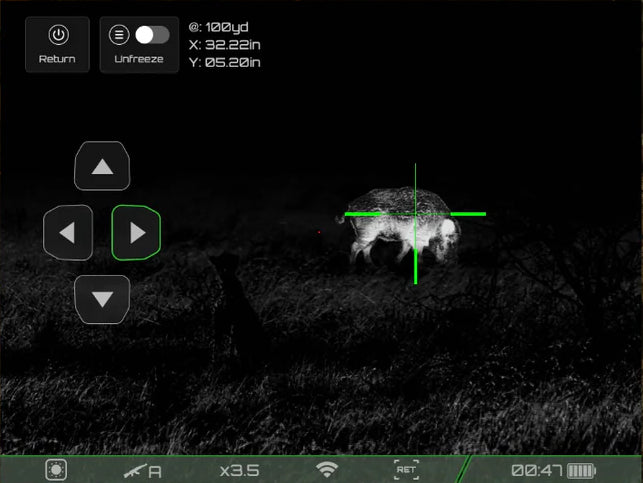

Return to Center (RTC) Function
After screen calibration, the RTC function automatically repositions the digital display closer to the absolute center of the X and Y axes. If the alignment deviation is minimal, it realigns the view directly to the center, providing a more comfortable field of view and making it effortless to maintain focus on your subject.
1000g Impact Resistance. Hunt Without Limits.
Tested to withstand a severe 1,000g impact, the STORM is engineered for the harshest environments. Its rugged housing ensures the internal optical sensor stays rock-solid under heavy vibrations or accidental drops—delivering consistent performance in the toughest outdoor conditions.

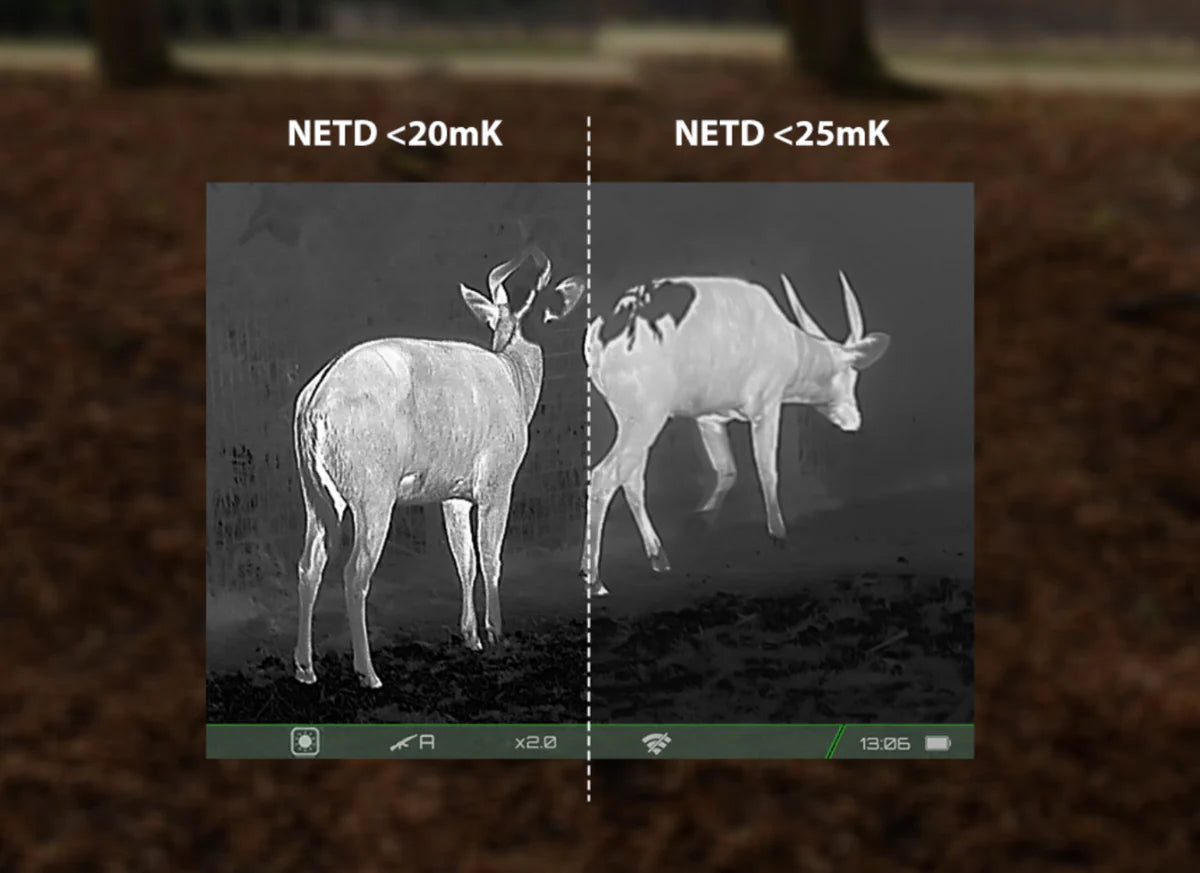

See What Others Miss
When visibility fades, STORM sharpens your edge. Its advanced 12µm sensor and vivid 1024 AMOLED screen cut through distortion with Sunny Mode, while Rain Mode heightens sensitivity in moisture-heavy air. From downpours to dense fog, STORM locks onto your target with unwavering clarity.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
384×288
Pixel Pitch
12μm
NETD
<25 mK
Frame Rate
50 Hz
Optical Specs
Objective Lens
35mm, F1.0
Base Magnification
3.5×
Field of View(H×V), degrees/m@100m
7.5°×5.7°/13.2×9.9m
Digital Zoom
1~ 4×
Eye Relief
48mm
Diopter Adjustment
-5D to +5D
Detection Range
1800m
Display Specs
Type
AMOLED
Resolution, pixels
1024×768
Laser Rangefinding
Measurement Range
1200m
Measurement Accuracy
±1m
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
454 g
Dimensions
151×83×61 mm
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type-C USB)
Picatinny Mount
