Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
NETD
Detection Range
Built-in lRF

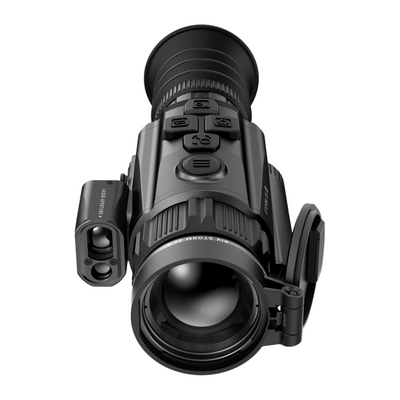

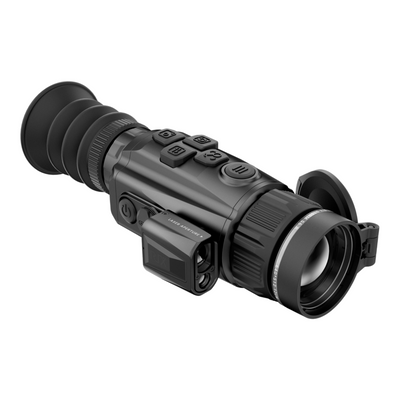

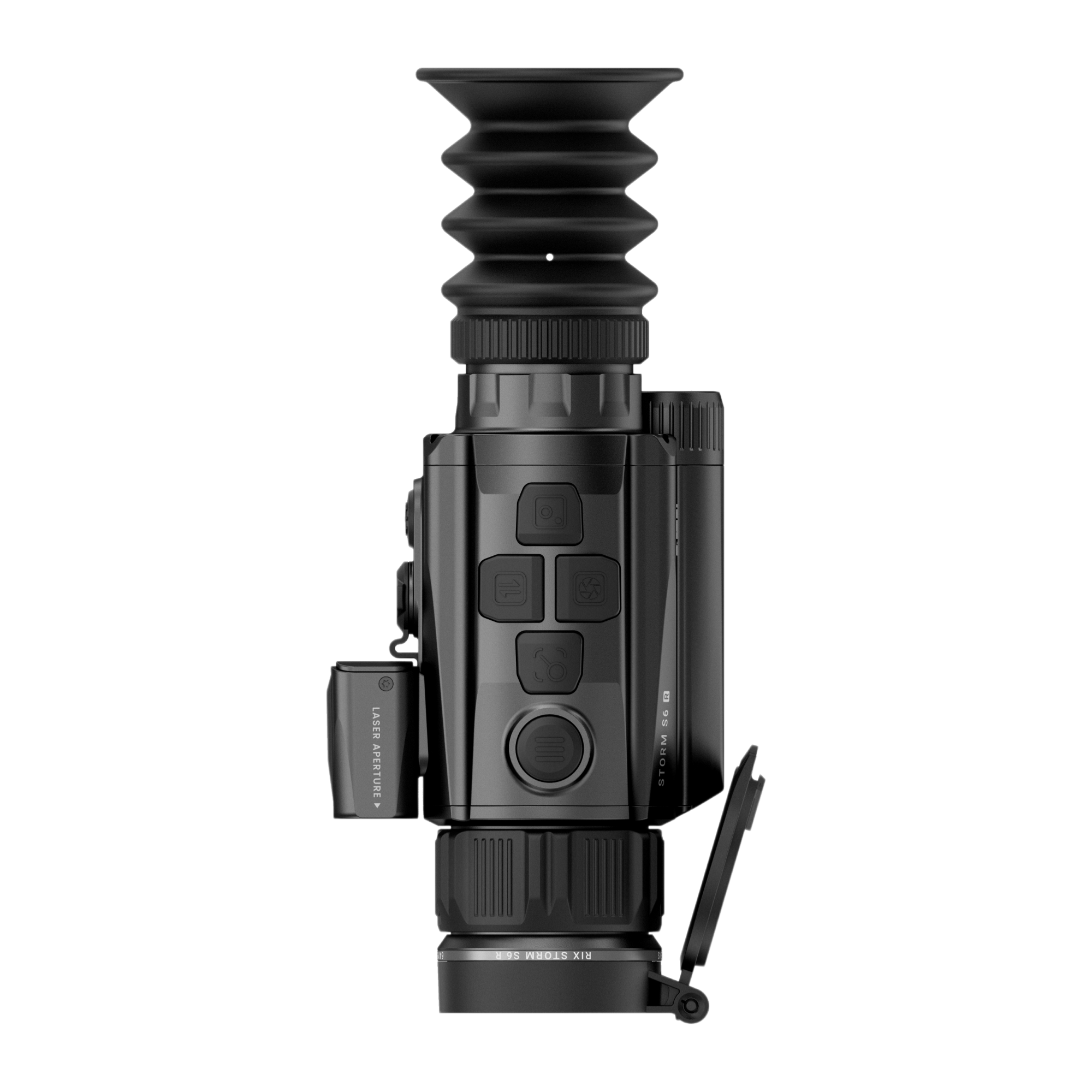

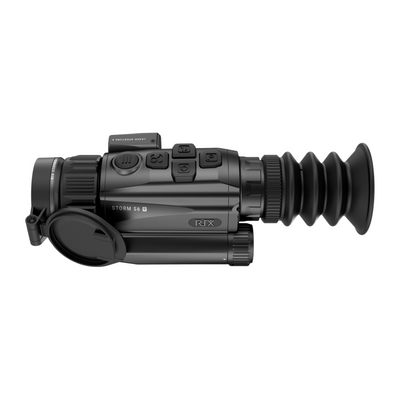

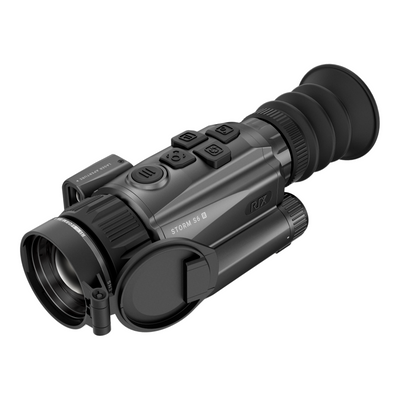

STORM S6R Thermal Imaging Optic
Product highlights
Sensor Resolution
Objective Lens
Optical Zoom
NETD
Detection Range
Built-in lRF
Free Shipping
5-Year Warranty with Product Registration
60-Day Hassle-Free Returns
OTHER MODELS
WHY CHOOSE STORM S6R
STORM S6R
S6R features an intuitive one-handed control system with directly mapped UI buttons, ensuring fast and precise operation even with gloves. Powered by a next-generation 640×512 thermal sensor with NETD <20mK, it delivers reduced noise and sharper detail for clearer imaging in challenging environments. A compact built-in laser rangefinder provides accurate distance measurement up to 1,312 yards, while maintaining a lightweight and streamlined design for field use.
Lightweight. Reliable. Versatile.

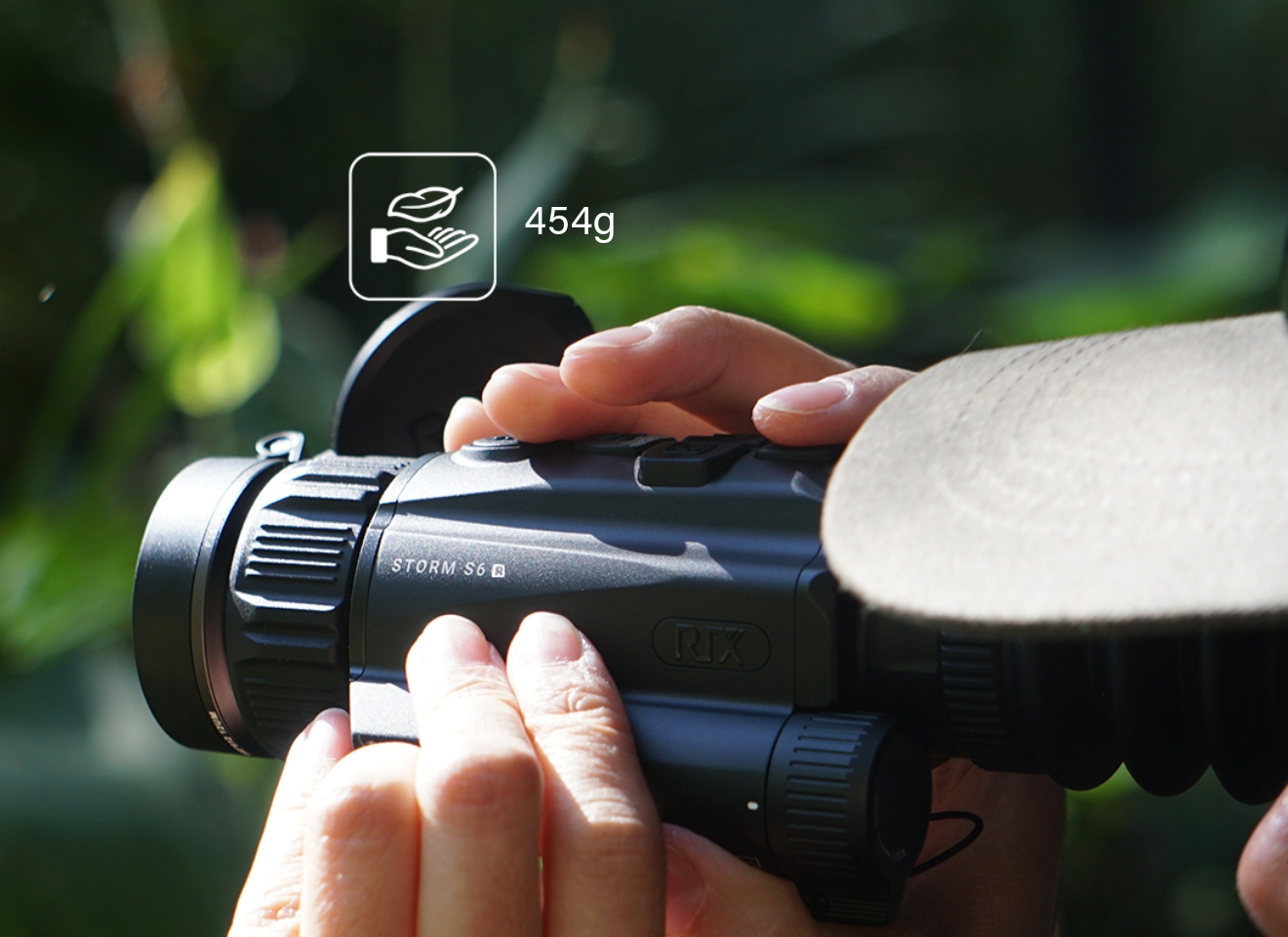

Weighing just 454g, the STORM series is perfectly designed for comfortable handheld use. The S6R integrates an advanced rangefinder and smart distance tracking system—delivering unmatched clarity and precision for long-range observation.
See the Heat. Sharper Than Ever.

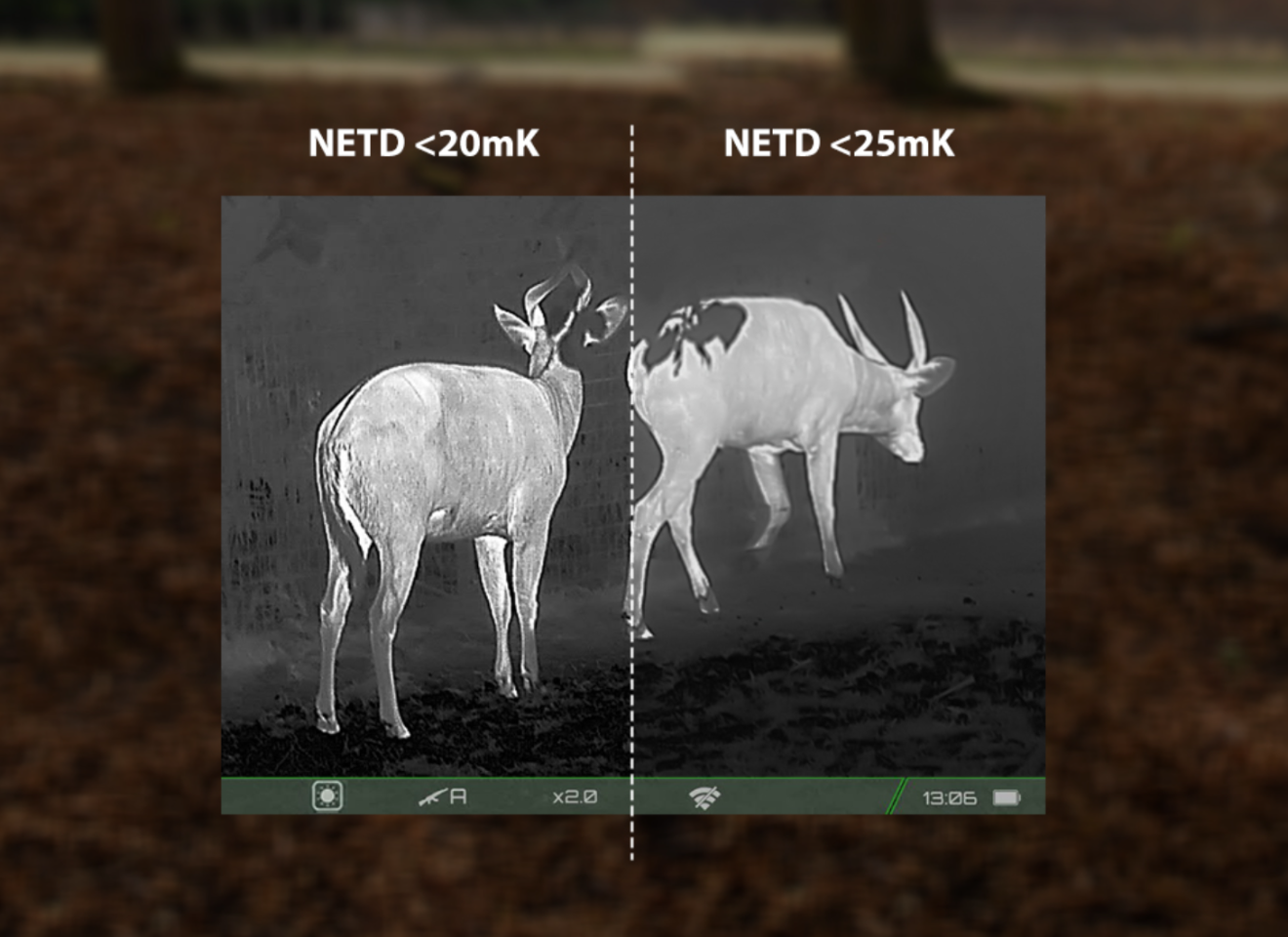

Powered by a 640×512 thermal sensor and ultra-low NETD <20mK, the S6R delivers stunning clarity—even in fog, rain, or high humidity.
Compact LRF with Smart Tracking
The S6R features an integrated laser rangefinder with a 1,200m range and ±1m accuracy, combined with an automated trajectory estimation tool—delivering precise, real-time spatial data without any extra bulk.
Master Every Range

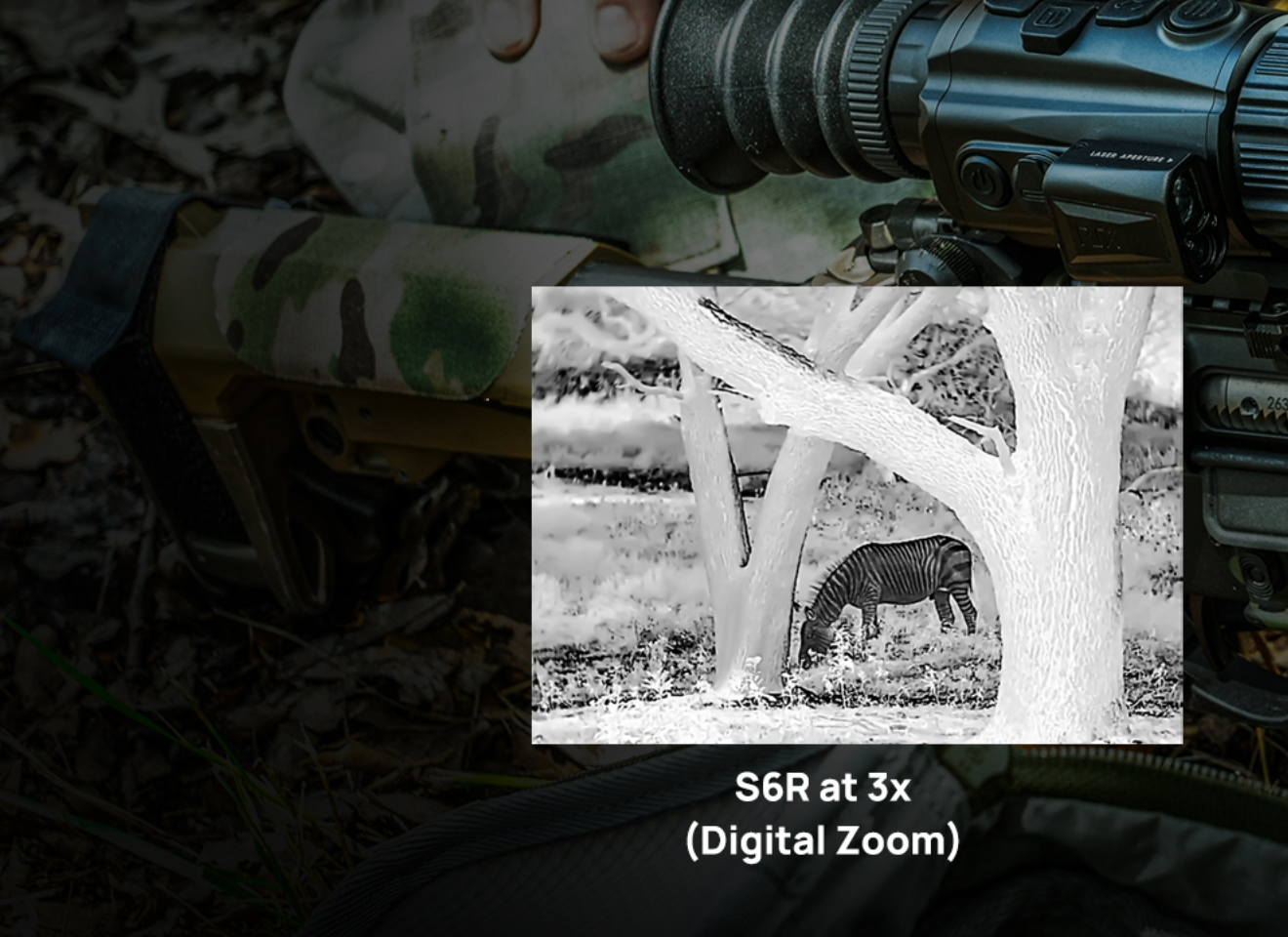

The S6R starts with a 2x base magnification and supports up to 3x digital zoom. Compared to devices with a 384-resolution sensor, it delivers sharper images and a noticeably wider field of view—making it easier to detect targets at longer distances.
Precision Controls, Anywhere
Large directional buttons ensure quick, glove-friendly operation. And the uniquely designed directional pad offers effortless operation—even in complete darkness.
Picture-in-Picture. Zoom Your Way.
Unlike others, the STORM lets you adjust the PiP magnification independently from the main view—so you can stay aware of your surroundings while zeroing in with precision.
Return to Center (RTC) Function
After screen calibration, the RTC function automatically repositions the digital display closer to the absolute center of the X and Y axes. If the alignment deviation is minimal, it realigns the view directly to the center, providing a more comfortable field of view and making it effortless to maintain focus on your subject.
1000g Impact Resistance.Hunt Without Limits.
Tested to withstand a severe 1,000g impact, the STORM is engineered for the harshest environments. Its rugged housing ensures the internal optical sensor stays rock-solid under heavy vibrations or accidental drops—delivering consistent performance in the toughest outdoor conditions.
See What Others Miss
When visibility fades, STORM sharpens your edge. Its advanced 12µm sensor and vivid 1024 AMOLED screen cut through distortion with Sunny Mode, while Rain Mode heightens sensitivity in moisture-heavy air. From downpours to dense fog, STORM locks onto your target with unwavering clarity.
Technical Specs
Sensor Specs
Type
VOx Uncooled
Resolution
640×512
Pixel Pitch
12μm
NETD
<20 mK
Frame Rate
50 Hz
Optical Specs
Objective Lens
35mm, F1.0
Base Magnification
2×
Field of View(H×V), degrees/m@100m
12.5°×9.4°/21.9×17.6m
Digital Zoom
1~ 4×
Eye Relief
48mm
Diopter Adjustment
-5D to +5D
Detection Range
1800m
Display Specs
Type
AMOLED
Resolution, pixels
1024×768
Laser Rangefinding
Measurement Range
1200m
Measurement Accuracy
±1m
Video Recorder
Video / Photo Resolution
1024×768
Video / Photo Format
.mp4 / .jpg
Built-in Memory
32GB
Physical Specs
Degree of Protection, IP Code
IP67
Operating Temperature Range
-20℃ to +50℃
Weight
454 g
Dimensions
151×83×61 mm
Connections and Compatibilities
Battery Type
18650
Operating Time on Battery Pack (at t=25℃/72°F)
4 h
External Power Supply, V
5V (Type-C USB)
1000g / 6000J
Picatinny Mount
