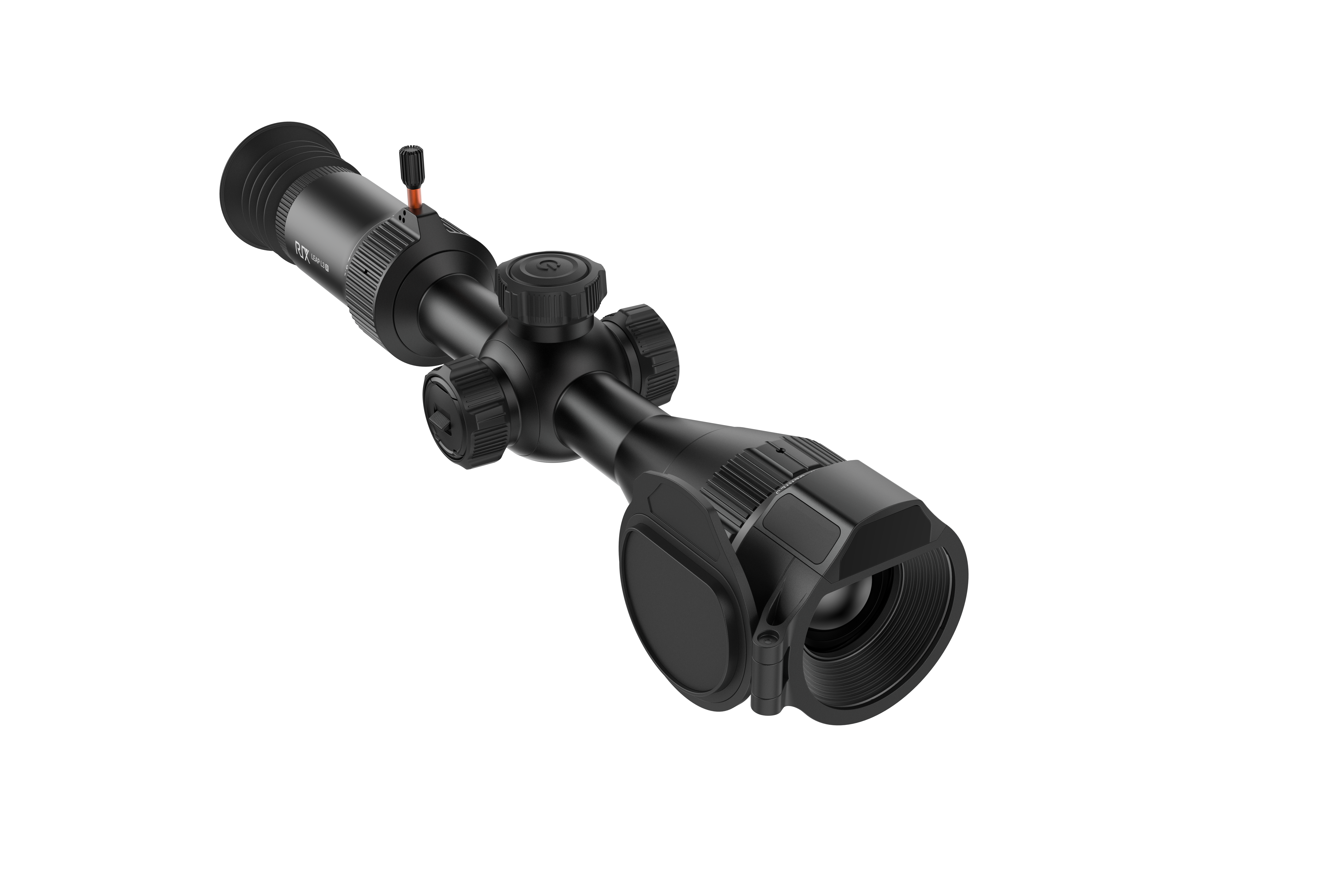

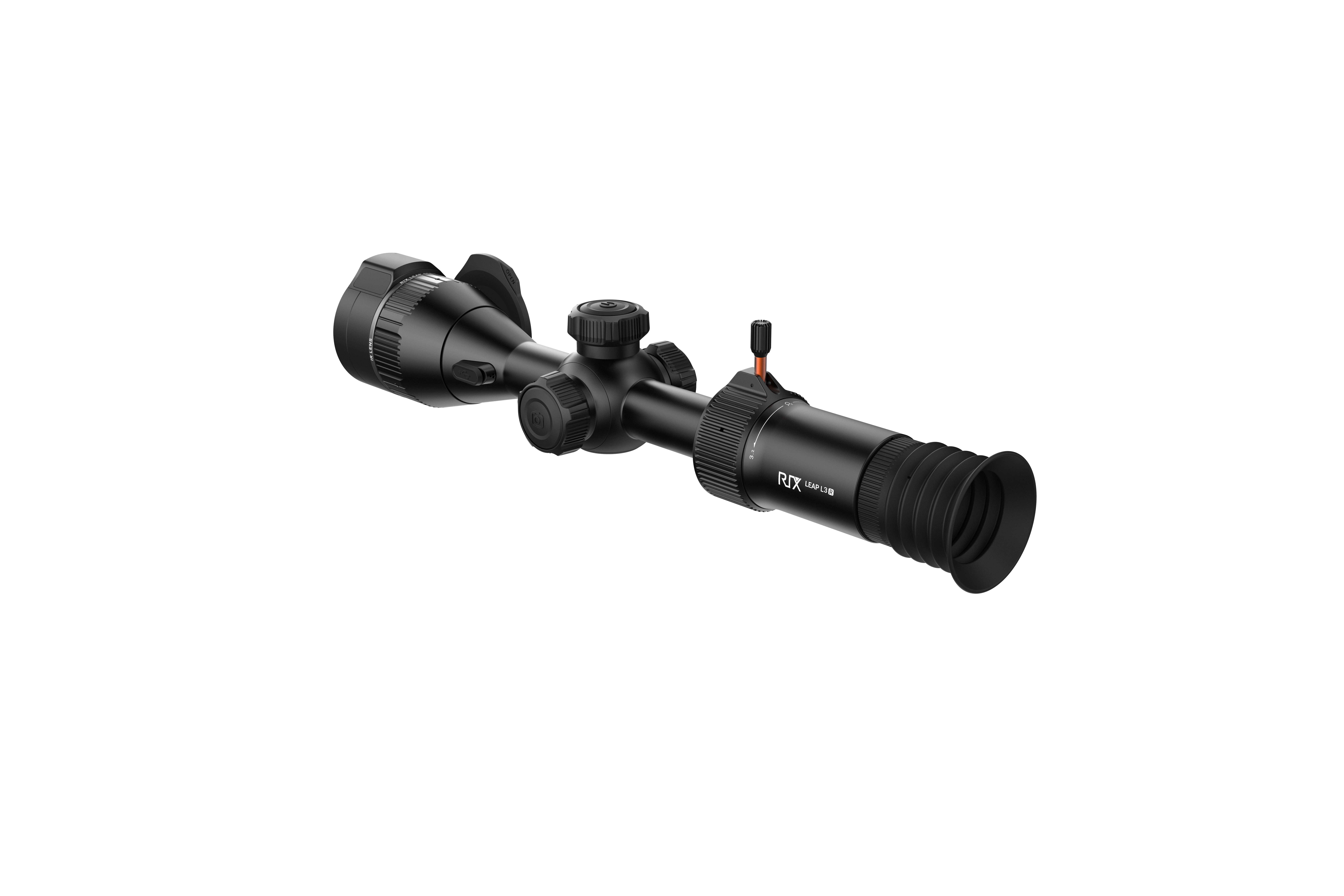

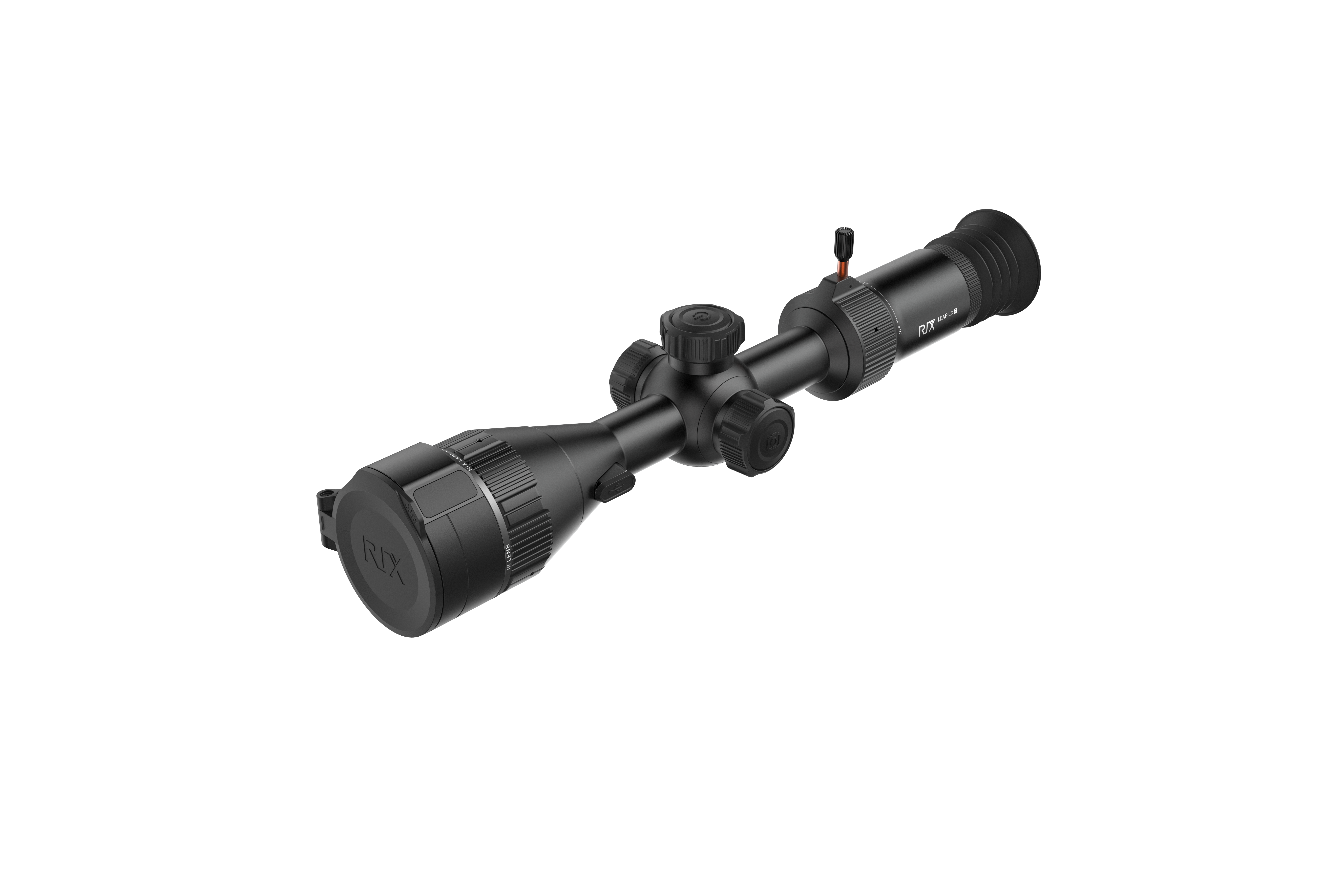

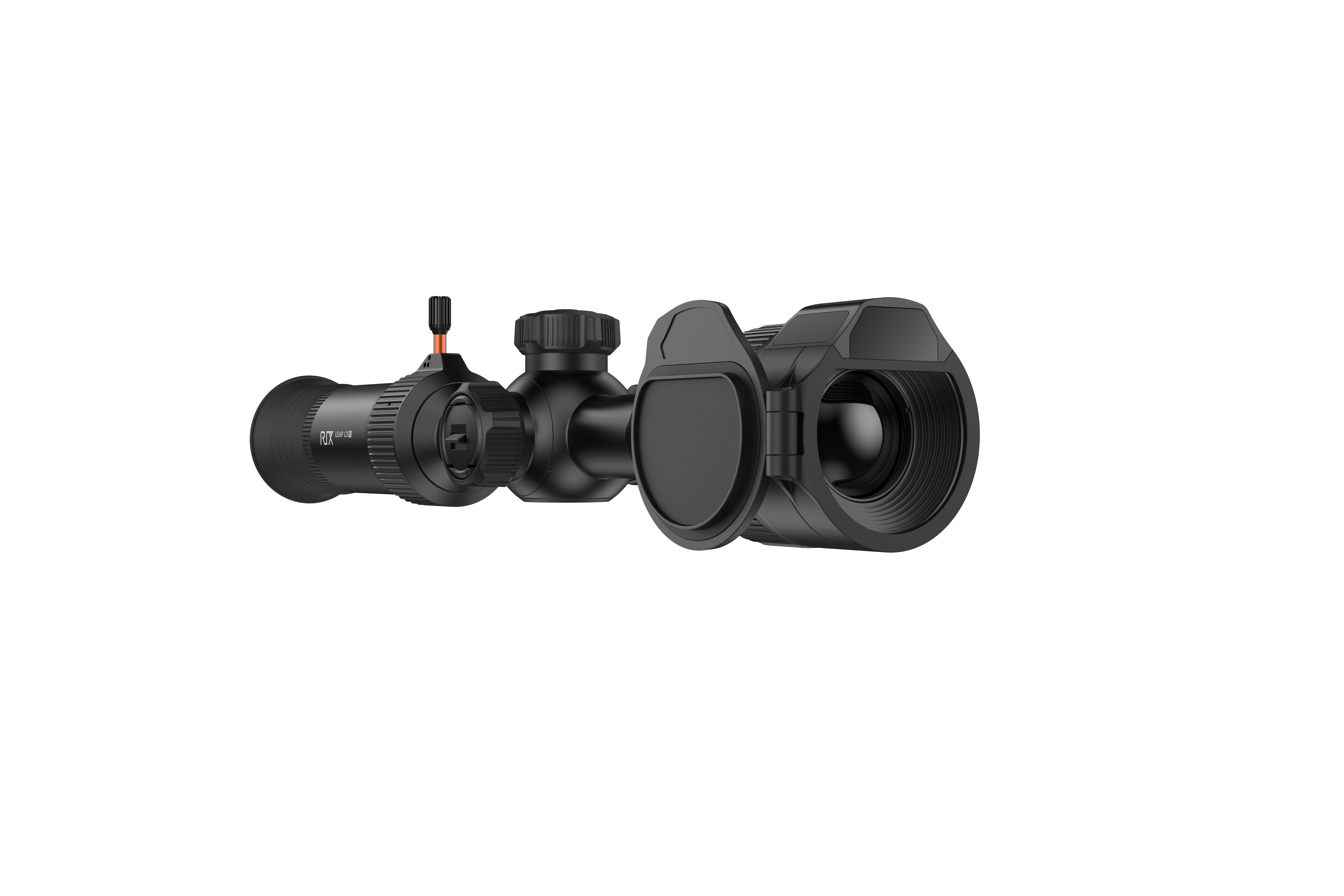

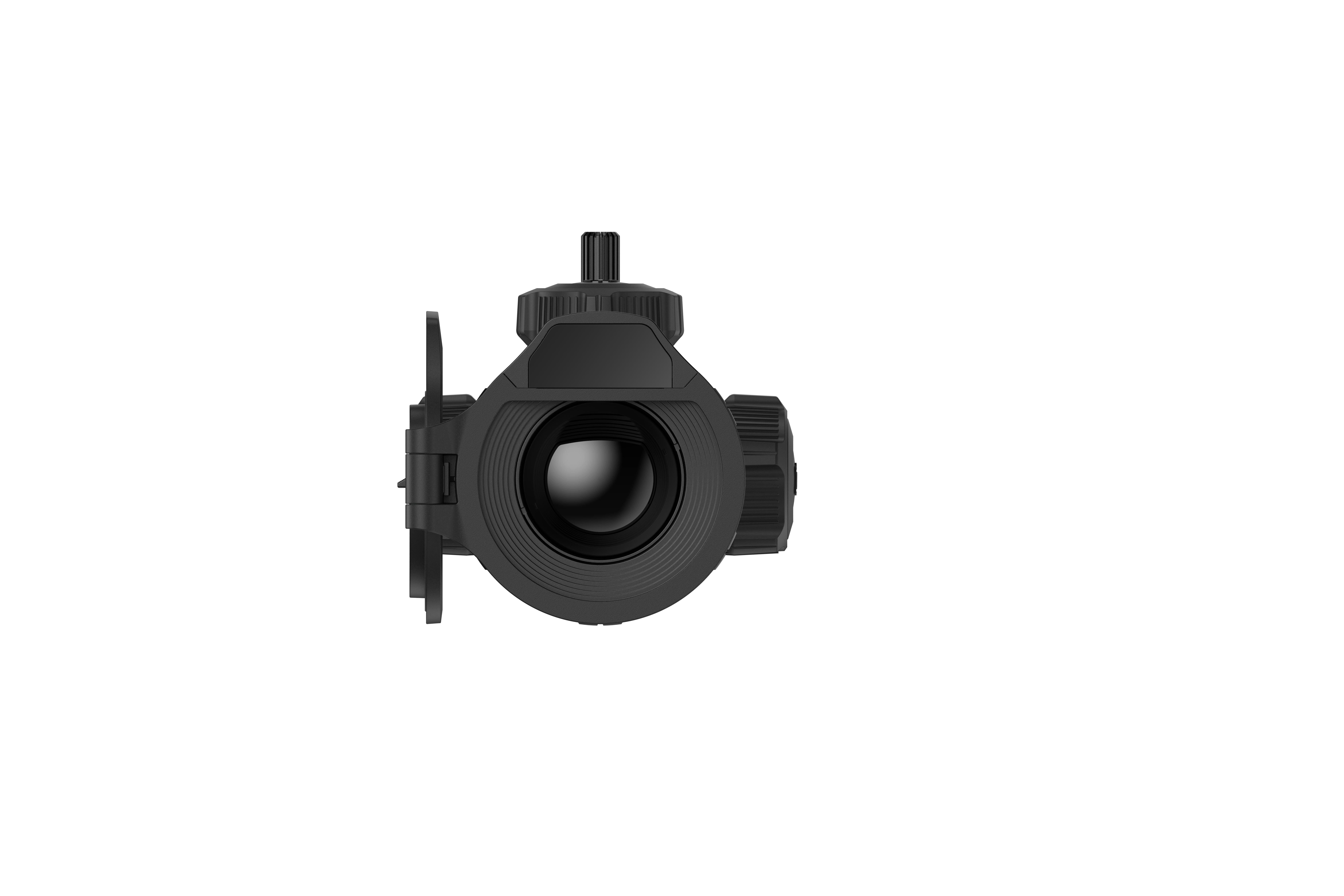

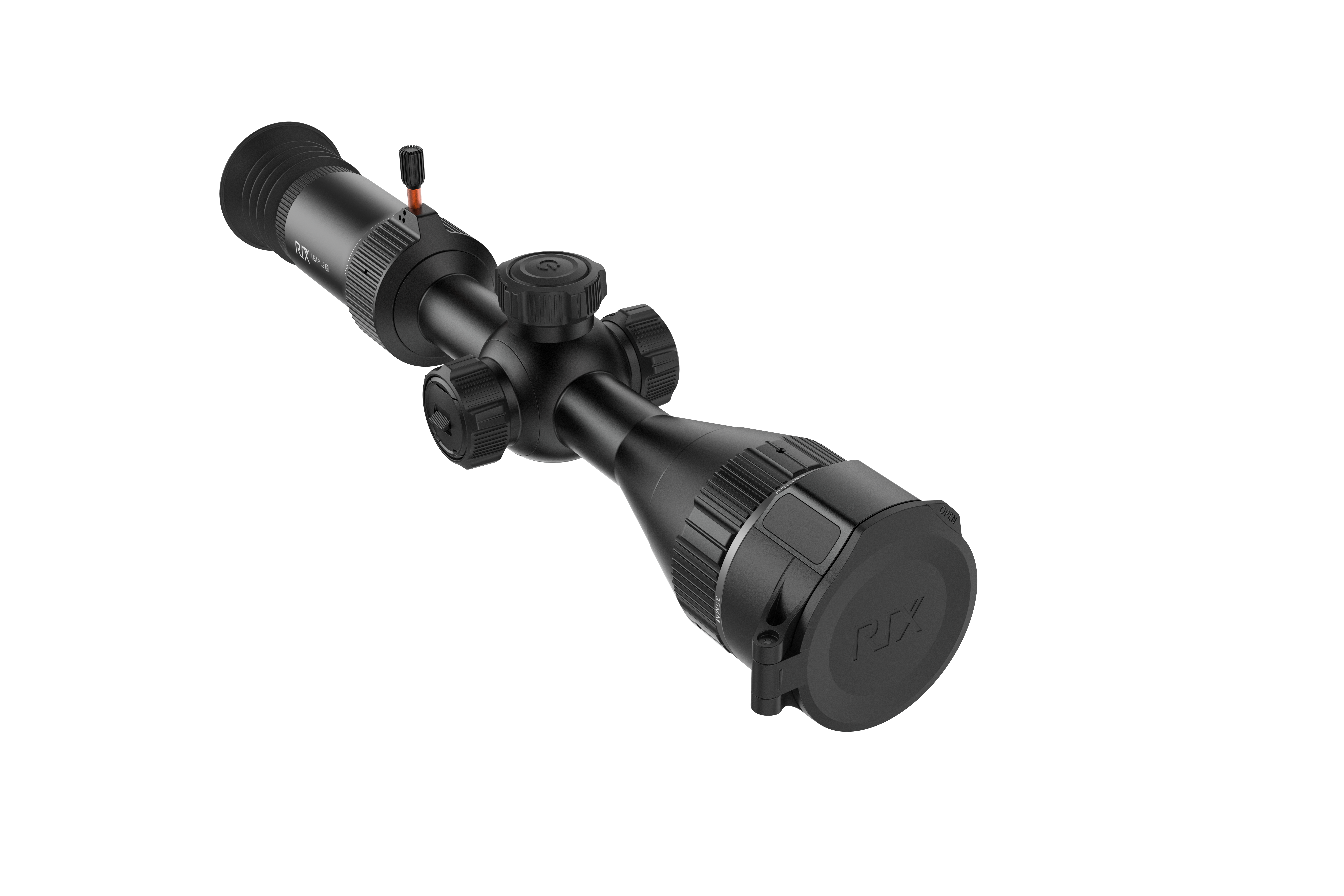

LEAP L3R Thermal Imaging Riflescopes

CORE CHARACTERISTICS

Sensor Resolution:

384×288

Objective Lens:

35mm

Optical Zoom:

3.2 to 9.6

Display Resolution:

1920×1080

NETD:

<20mK

€2228.82 VAT included

Amount of stock: 0

Quantity:

Model		L3R
Sensor Specifications	Type	VOx Uncooled
	Resolution, pixels	384×288
	Pixel pitch, μm	12
	NETD, mK	<20
	Frame Rate, Hz	50

Optical Specifications	Objective Lens，mm	35
	Optic Zoom, x	3.2 to 9.6
	Field of View (H×V)	7.5×4.2°
	Digital Zoom, x	1 to 4
	Eye Relief, mm	50
	Diopter Adjustment, D	-5 to +5
	Detection Range, m	1800

Display Specifications	Type	AMOLED
Display Specifications	Resolution, pixels	1920×1080

Laser Rangefinding	Measurement Range, m	1200
Laser Rangefinding	Measurement Accuracy, m	±1

Video Recorder	Video / Photo Resolution, pixel	1280×720
	Video / Photo Format	.mp4 / .jpg
	Built-in Memory, GB	32

Physical Specifications	Degree of Protection, IP code	IP67
	Operating Temperature Range, ℃	-20 to+50
	Weight, g	1200
	Dimensions, inch	14.2×3.5×3

Connections and Compatibilities	Battery Type	18650
	Operating Time on Battery Pack (at t=25℃), h	4
	External Power Supply, V	5V (Type C USB)
	Max Recoil Power on Rifled Weapon (Eo), g/Joules	1000g/6000Joules
	Compatible Mounts	30mm rings
